AD8551ARMZ - Analog Devices

Description: OP Amp Single GP R-R I/O 5V 8-Pin MSOP

Download AD8551ARMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

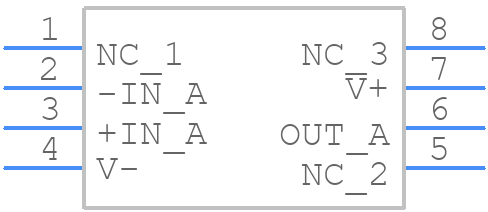

AD8551ARMZ - Analog Devices - PCB symbol
