- Part Number AD8553ARMZ
- Manufacturer Analog Devices
- Pin Count 10
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - 10-Lead MSOP
- Released Date Mar 3, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD8553ARMZ Details
-
Manufacturer Part Number:
AD8553ARMZ
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
TSSOP
-
Package Description:
MSOP-10
-
Pin Count:
10
-
Manufacturer Package Code:
RM-10
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
AD8553ARMZ Frequently Asked Questions (FAQs)
-
The AD8553ARMZ is a high-precision, low-noise amplifier, and proper layout and placement are crucial to achieve optimal performance. It is recommended to keep the input and output traces as short as possible, use a solid ground plane, and avoid running digital lines near the amplifier. Additionally, decoupling capacitors should be placed close to the power pins to reduce noise.
-
The AD8553ARMZ is specified to operate from -40°C to 125°C. To ensure operation within this range, it is essential to provide adequate heat sinking, avoid overheating, and ensure good airflow around the device. Additionally, the device should be operated within its specified power supply voltage range to prevent overheating.
-
To prevent damage or latch-up, it is recommended to power up the AD8553ARMZ in the following sequence: 1) Apply the analog power supply (VCC), 2) Apply the digital power supply (VDD), and 3) Apply the input signals. This sequence ensures that the internal circuitry is properly initialized and prevents damage or latch-up.
-
To troubleshoot common issues with the AD8553ARMZ, start by checking the power supply voltage, input signals, and output loads. Ensure that the device is operated within its specified temperature range and that the layout and placement are correct. If oscillations or instability persist, check for parasitic capacitance, inductive coupling, or other noise sources that may be affecting the device's operation.
-
To prevent electrostatic discharge (ESD) damage, it is recommended to handle the AD8553ARMZ by its body or pins, use an anti-static wrist strap or mat, and store the device in an anti-static bag or container. Additionally, ensure that the device is properly grounded during handling and assembly.
Trust Checks
Community Provided
System Verified
Community Approved
AD8553ARMZ Overview

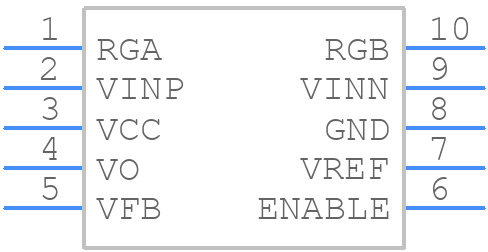

Use the download button to access the AD8553ARMZ schematic symbol, PCB footprint, and 3D model.
