Part Image

AD8555ARZ - Analog Devices

Description: AD8555ARZ, Programmable Gain Amplifier, Rail to Rail Input/Output 96dB, 8-Pin SOIC N

Download AD8555ARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

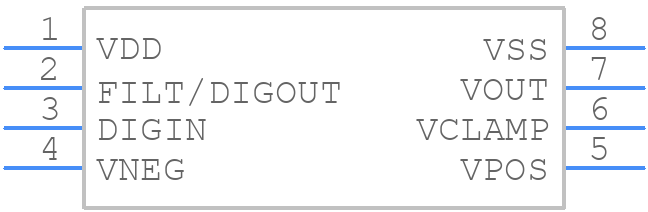

Symbol
AD8555ARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8555ARZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - AD8555ARZ
click to zoom
3D Models
AD8555ARZ - Analog Devices - 3D model - Small Outline Packages - AD8555ARZ
click to zoom

AD8555ARZ Details

  • Manufacturer Part Number:

    AD8555ARZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MS-012AA, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    2.5 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

AD8555ARZ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the AD8555ARZ involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane to minimize noise and interference.
  • To optimize the performance of the AD8555ARZ in a noisy environment, use shielding, filtering, and grounding techniques to minimize electromagnetic interference (EMI). Use a low-pass filter at the input to remove high-frequency noise, and consider using a ferrite bead or a common-mode choke to filter out high-frequency noise.
  • The maximum power dissipation of the AD8555ARZ is 1.4W, which is calculated based on the maximum junction temperature of 150°C and the thermal resistance of the package. It's essential to ensure proper thermal management to prevent overheating and ensure reliable operation.
  • The AD8555ARZ is rated for operation from -40°C to 125°C, but its performance may degrade at high temperatures. It's essential to consider the temperature coefficient of the device and ensure that the operating temperature is within the specified range to maintain accuracy and reliability.
  • Common issues with the AD8555ARZ include offset voltage, noise, and oscillation. To troubleshoot these issues, check the power supply, input signals, and PCB layout. Ensure that the device is properly biased, and the input signals are within the specified range. Use an oscilloscope to check for oscillations and noise, and consider using a simulation tool to model the circuit and identify potential issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8555ARZ Overview

Use the download button to access the AD8555ARZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD855, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
