AD8556ARZ-REEL7 - Analog Devices

Description: SP Amp Programmable Amp Single R-R I/O 5.5V Automotive 8-Pin SOIC N T/R

Download AD8556ARZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

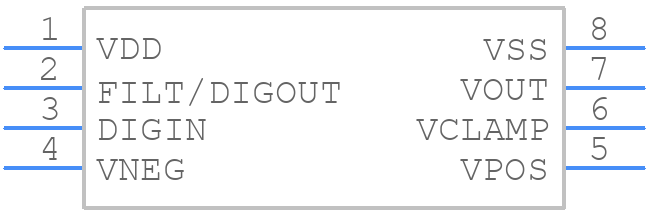

Symbol
AD8556ARZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8556ARZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - - [SOIC_N]-
click to zoom
3D Models
AD8556ARZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - - [SOIC_N]-
click to zoom

AD8556ARZ-REEL7 Details

  • Manufacturer Part Number:

    AD8556ARZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    140 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    2.8 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

AD8556ARZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8556ARZ-REEL7 involves keeping the input and output traces short and away from noise sources, using a solid ground plane, and decoupling the power supply pins with capacitors. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • The AD8556ARZ-REEL7 is specified to operate from -40°C to 125°C. Ensure that the device is properly heatsinked, and the ambient temperature is within the specified range. Also, consider the power dissipation and thermal resistance of the package when designing the system.
  • The recommended input impedance for the AD8556ARZ-REEL7 is 1 kΩ to 10 kΩ. This ensures that the input signal is not attenuated and the amplifier operates within its specified bandwidth.
  • Yes, the AD8556ARZ-REEL7 can be used as a single-ended amplifier by tying the negative input to ground and applying the input signal to the positive input. However, this will reduce the common-mode rejection ratio and increase the noise susceptibility.
  • To reduce noise and EMI, use a low-noise power supply, decouple the power supply pins with capacitors, use a shielded enclosure, and keep the input and output traces away from noise sources. Also, consider using a common-mode choke or a ferrite bead to filter out high-frequency noise.
