AD8557ACPZ-REEL7 - Analog Devices

Description: Digitally Programmable Sensor Signal Amplifier

Download AD8557ACPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

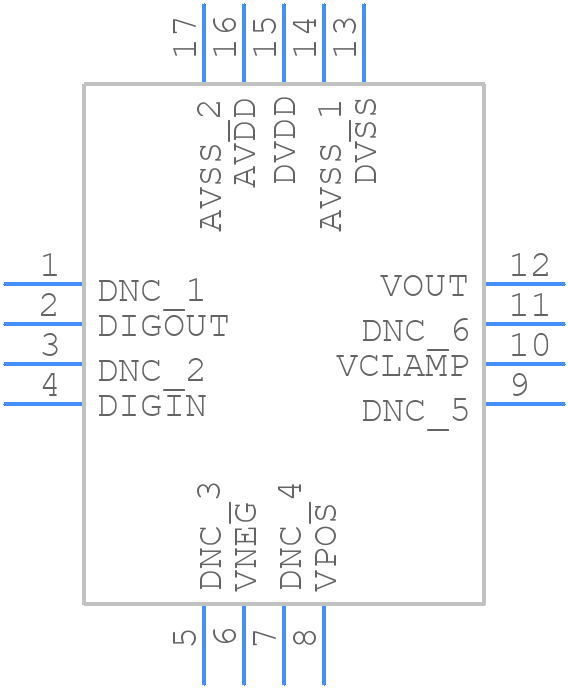

AD8557ACPZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8557ACPZ-REEL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-16-20)
click to zoom
3D Models
AD8557ACPZ-REEL7 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-16-20)
click to zoom

AD8557ACPZ-REEL7 Details

  • Manufacturer Part Number:

    AD8557ACPZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-10

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

AD8557ACPZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8557 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the analog and digital sections. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • The AD8557 has an internal calibration circuit that can be enabled by tying the CAL pin to VCC. The device can also be calibrated externally using an external voltage reference. Refer to the datasheet for specific calibration procedures.
  • The AD8557 can handle input voltages up to ±VCC (i.e., ±5V for a 5V supply). However, the device is designed to operate with input voltages up to ±4.096V for optimal performance.
  • To minimize noise and interference, use a low-noise power supply, decouple the power pins with capacitors, and use a shielded enclosure. Additionally, keep the analog and digital sections separate, and use a ground plane to reduce electromagnetic interference.
  • The typical power consumption of the AD8557 is around 350 μA at 5V supply voltage. However, this can vary depending on the specific application and operating conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8557ACPZ-REEL7 Overview

Use the download button to access the AD8557ACPZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD855, or try a keyword search, such as Other Analog ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
