AD8564ANZ - Analog Devices

Description: AD8564ANZ, Quad Comparator 5 V 16-Pin PDIP

Download AD8564ANZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

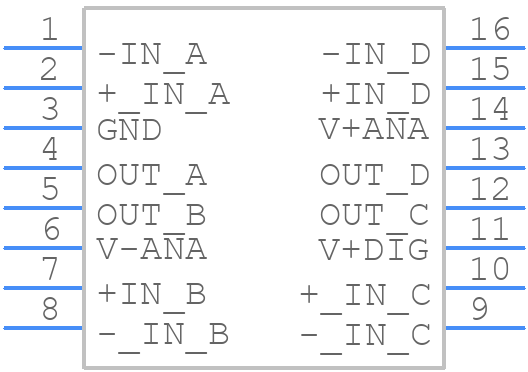

AD8564ANZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8564ANZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-16
click to zoom
3D Models
AD8564ANZ - Analog Devices - 3D model - Dual-In-Line Packages - N-16
click to zoom

AD8564ANZ Details

  • Manufacturer Part Number:

    AD8564ANZ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    ROHS COMPLIANT, PLASTIC, MS-001AB, DIP-16

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    9 µA

  • Bias Current-Max (IIB) @25C:

    0.4 µA

  • Input Offset Voltage-Max:

    10000 µV

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e3

  • Length:

    20.07 mm

  • Neg Supply Voltage Limit-Max:

    -7 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    TOTEM POLE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    8 ns

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max:

    15.6 mA

  • Supply Voltage Limit-Max:

    7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD8564ANZ Frequently Asked Questions (FAQs)

  • The AD8564ANZ is a high-speed amplifier, and as such, it requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to keep the input and output traces as short as possible, and to use a solid ground plane to reduce noise. Additionally, it is recommended to place the amplifier close to the signal source and to use a low-impedance output load to minimize ringing and oscillation.
  • The gain resistor values for the AD8564ANZ depend on the specific application and the desired gain. The datasheet provides a gain equation that can be used to calculate the required resistor values. Additionally, Analog Devices provides a gain calculator tool that can be used to simplify the process. It is also important to consider the tolerance and temperature coefficient of the resistors to ensure that the gain remains stable over temperature.
  • The AD8564ANZ can drive a maximum capacitive load of 100 pF. However, it is recommended to limit the capacitive load to 50 pF or less to ensure optimal performance and to prevent oscillation. If a larger capacitive load is required, it may be necessary to add a series resistor to dampen the load and prevent oscillation.
  • The AD8564ANZ has a recommended operating temperature range of -40°C to 125°C, and a recommended power supply voltage range of 2.7 V to 5.5 V. It is important to ensure that the amplifier is operating within these ranges to ensure optimal performance and to prevent damage. Additionally, it is recommended to follow proper PCB design and layout practices to minimize thermal gradients and to ensure good thermal dissipation.
  • The typical settling time of the AD8564ANZ is 100 ns to 1% of the final value. This means that the amplifier takes approximately 100 ns to settle to within 1% of the final value after a step input. The settling time can affect the performance of the amplifier in applications that require fast settling, such as in data acquisition systems or in high-speed signal processing applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8564ANZ Overview

Use the download button to access the AD8564ANZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD856, or try a keyword search, such as Comparators
