AD8564ARZ - Analog Devices

Description: AD8564ARZ, Quad Comparator 5 V 16-Pin SOIC N

Download AD8564ARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

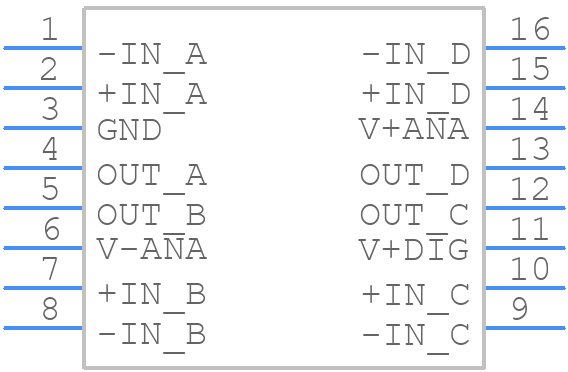

AD8564ARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8564ARZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-16 (SOIC)
click to zoom
3D Models
AD8564ARZ - Analog Devices - 3D model - Small Outline Packages - R-16 (SOIC)
click to zoom

AD8564ARZ Details

  • Manufacturer Part Number:

    AD8564ARZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MS-012AC, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    R-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    9 µA

  • Bias Current-Max (IIB) @25C:

    0.4 µA

  • Input Offset Voltage-Max:

    10000 µV

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -7 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    TOTEM POLE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    8 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    15.6 mA

  • Supply Voltage Limit-Max:

    7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

AD8564ARZ Frequently Asked Questions (FAQs)

  • The AD8564ARZ is a high-speed amplifier, and as such, it requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to keep the input and output traces as short as possible, and to use a solid ground plane to reduce noise. Additionally, it is recommended to place the amplifier close to the signal source and to use a low-impedance output to reduce ringing and oscillations.
  • The gain resistor values for the AD8564ARZ depend on the specific application and the desired gain. The datasheet provides a gain equation that can be used to calculate the required resistor values. Additionally, Analog Devices provides a gain calculator tool that can be used to simplify the process. It is also recommended to consider the noise and distortion performance of the amplifier when selecting the gain resistor values.
  • The maximum power dissipation of the AD8564ARZ is 1.4W. To ensure that this limit is not exceeded, it is recommended to calculate the power dissipation based on the supply voltage, output current, and package thermal resistance. The datasheet provides a power dissipation calculation equation that can be used to determine the maximum allowable power dissipation. Additionally, it is recommended to use a heat sink or thermal pad to reduce the junction temperature and ensure reliable operation.
  • Common issues with the AD8564ARZ, such as oscillations or instability, can often be attributed to poor layout and placement, incorrect gain resistor values, or inadequate power supply decoupling. To troubleshoot these issues, it is recommended to check the layout and placement of the amplifier, verify the gain resistor values, and ensure that the power supply is properly decoupled. Additionally, it is recommended to use a scope or other diagnostic tool to measure the output signal and identify the source of the issue.
  • The recommended power supply decoupling for the AD8564ARZ is a 10uF ceramic capacitor in parallel with a 100nF ceramic capacitor, placed as close as possible to the power pins of the amplifier. This decoupling scheme helps to reduce noise and ensure stable operation of the amplifier.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8564ARZ Overview

Use the download button to access the AD8564ARZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD856, or try a keyword search, such as Comparators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
