AD8567ACPZ-R2 - Analog Devices

Description: Analog Devices AD8567ACPZ-R2, Quad Op Amp, 5MHz Rail-Rail, 4.5 → 16 V, 16-Pin LFCSP

Download AD8567ACPZ-R2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

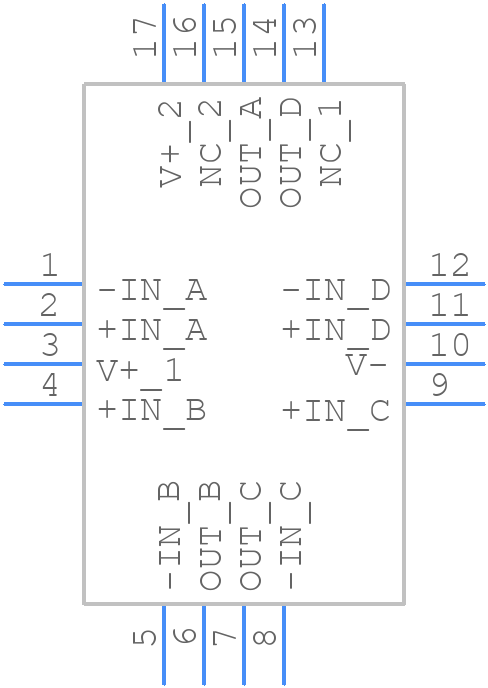

AD8567ACPZ-R2 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8567ACPZ-R2 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-23
click to zoom
3D Models
AD8567ACPZ-R2 - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-23
click to zoom

AD8567ACPZ-R2 Details

  • Manufacturer Part Number:

    AD8567ACPZ-R2

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-23

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.8 µA

  • Bias Current-Max (IIB) @25C:

    0.6 µA

  • Common-mode Reject Ratio-Min:

    54 dB

  • Common-mode Reject Ratio-Nom:

    95 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    10000 µV

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Slew Rate-Min:

    4 V/us

  • Slew Rate-Nom:

    6 V/us

  • Supply Current-Max:

    4 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Unity Gain BW-Nom:

    5000

  • Voltage Gain-Min:

    3000

  • Wideband:

    NO

  • Width:

    4 mm

AD8567ACPZ-R2 Frequently Asked Questions (FAQs)

  • The AD8567ACPZ-R2 is a high-speed amplifier, and as such, it requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to keep the input and output traces as short as possible, and to use a solid ground plane to reduce noise. Additionally, it is recommended to place the amplifier close to the signal source and to use a low-impedance output load to minimize ringing and oscillations.
  • The gain resistor values for the AD8567ACPZ-R2 depend on the specific application and the desired gain. The datasheet provides a gain equation that can be used to calculate the required resistor values. Additionally, Analog Devices provides a gain calculator tool that can be used to simplify the process. It is also important to consider the tolerance and temperature coefficient of the resistors to ensure that the gain remains stable over temperature and time.
  • The AD8567ACPZ-R2 can drive a maximum capacitive load of 100pF. Exceeding this limit can cause the amplifier to oscillate or become unstable. If a larger capacitive load is required, it is recommended to use a buffer amplifier or to add a series resistor to the output to reduce the capacitive loading.
  • The AD8567ACPZ-R2 has a recommended operating temperature range of -40°C to +125°C, and a recommended power supply voltage range of 2.7V to 5.5V. It is important to ensure that the amplifier is operated within these ranges to ensure optimal performance and reliability. Additionally, it is recommended to follow proper PCB design and layout practices to minimize thermal gradients and power supply noise.
  • The typical settling time of the AD8567ACPZ-R2 is 100ns to 200ns, depending on the gain and output load. This settling time can affect the performance of the amplifier in applications that require fast settling, such as data acquisition systems or high-speed amplifiers. It is important to consider the settling time when designing the system and to ensure that the amplifier has sufficient time to settle before making measurements or taking actions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8567ACPZ-R2 Overview

Use the download button to access the AD8567ACPZ-R2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD856, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
