AD8582ANZ - Analog Devices

Description: AD8582ANZ, 12 bit-Bit DAC Dual, 62.5ksps, Parallel, 24-Pin PDIP

Download AD8582ANZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

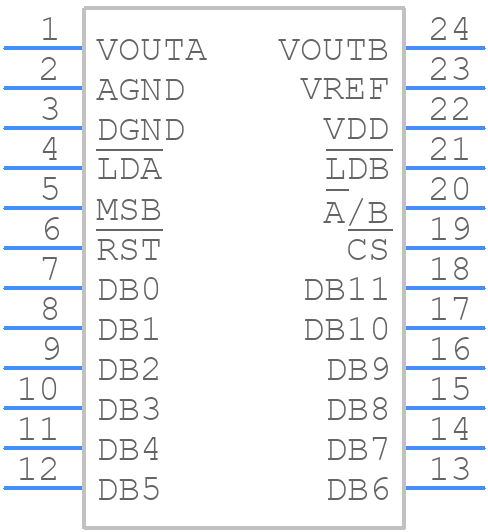

AD8582ANZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

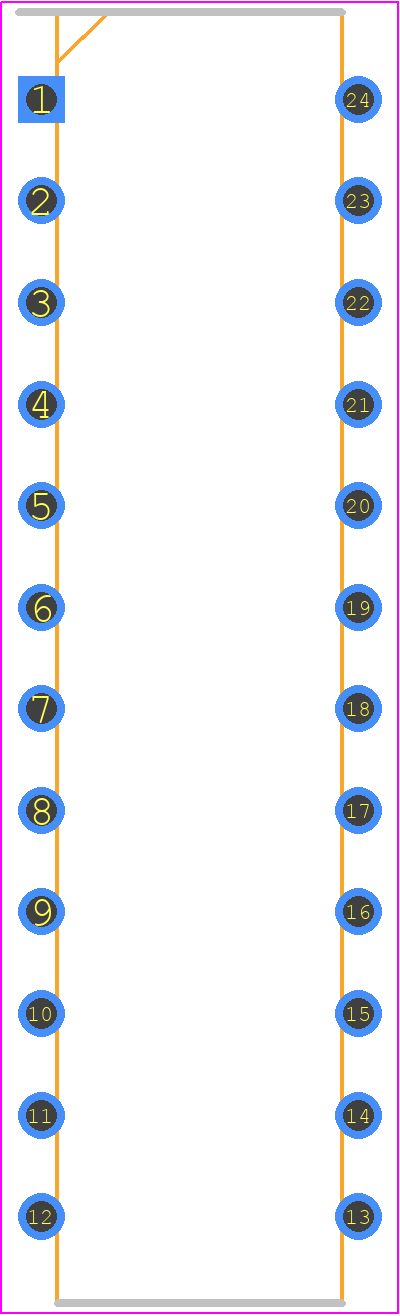

AD8582ANZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 24-Lead Plastic DIP (N-24)
click to zoom
3D Models
AD8582ANZ - Analog Devices - 3D model - Dual-In-Line Packages - 24-Lead Plastic DIP (N-24)
click to zoom

AD8582ANZ Details

  • Manufacturer Part Number:

    AD8582ANZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    N-24-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    4.095 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e3

  • Length:

    30.485 mm

  • Linearity Error-Max (EL):

    0.048%

  • Number of Bits:

    12

  • Number of Functions:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Settling Time-Nom (tstl):

    16 µs

  • Supply Current-Max:

    7 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD8582ANZ Frequently Asked Questions (FAQs)

  • The AD8582ANZ is a high-precision, low-noise amplifier, and its performance can be affected by the PCB layout and component placement. It is recommended to follow a star-grounding scheme, keep the input and output traces short and away from noise sources, and use a solid ground plane to minimize noise coupling. Additionally, place the amplifier close to the input signal source and use a low-ESR capacitor for decoupling.
  • The gain resistor values for the AD8582ANZ depend on the desired gain and the input signal range. The datasheet provides a gain equation that can be used to calculate the required resistor values. Additionally, Analog Devices provides a gain calculator tool that can be used to simplify the process. It is also important to consider the resistor tolerance and temperature coefficient to ensure accurate gain setting.
  • The AD8582ANZ has an absolute maximum input voltage rating of ±15V, but it is recommended to limit the input voltage to ±10V to ensure reliable operation and prevent damage. Exceeding the maximum input voltage can cause permanent damage to the device.
  • Yes, the AD8582ANZ can be used as a unity-gain buffer by connecting the output directly to the inverting input. However, this configuration can lead to oscillations due to the amplifier's high gain-bandwidth product. To prevent oscillations, it is recommended to add a small capacitor (e.g., 10pF) in parallel with the feedback resistor and to ensure that the input and output traces are properly terminated.
  • The AD8582ANZ is specified to operate from -40°C to +125°C. To ensure operation within this range, it is recommended to provide adequate heat sinking, especially in high-power or high-temperature applications. Additionally, consider the temperature coefficient of the gain resistors and other components to ensure that the amplifier's performance remains stable over temperature.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8582ANZ Overview

Use the download button to access the AD8582ANZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD858, or try a keyword search, such as Digital to Analog Converters
