AD8582AR-REEL - Analog Devices

Description: IC DAC DUAL 12BIT 5V 24SOIC

Download AD8582AR-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

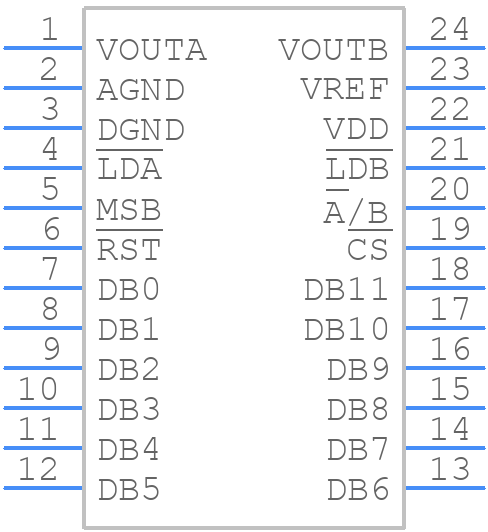

AD8582AR-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8582AR-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SOL-24_2022
click to zoom
3D Models
AD8582AR-REEL - Analog Devices - 3D model - Small Outline Packages - SOL-24_2022
click to zoom

AD8582AR-REEL Details

  • Manufacturer Part Number:

    AD8582AR-REEL

  • Source Url Status Check Date:

    2013-05-01 14:56:28.749

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RW-24

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog Output Voltage-Max:

    4.095 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e0

  • Length:

    15.4 mm

  • Linearity Error-Max (EL):

    0.048%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    12

  • Number of Functions:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    240

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Settling Time-Nom (tstl):

    16 µs

  • Supply Current-Max:

    7 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

AD8582AR-REEL Frequently Asked Questions (FAQs)

  • The AD8582AR-REEL is a high-precision, low-noise amplifier, and its performance can be affected by the PCB layout and component placement. It is recommended to follow a star-grounding scheme, keep the input and output traces short and away from noise sources, and use a solid ground plane to minimize noise coupling. Additionally, place the amplifier close to the signal source and use a low-ESR capacitor for power supply decoupling.
  • The AD8582AR-REEL is specified to operate from -40°C to 125°C. To ensure operation within this range, it is recommended to provide adequate heat sinking, avoid exposing the device to extreme temperatures during storage or handling, and use a thermally conductive material for the PCB and package. Additionally, consider using thermal simulation tools to estimate the junction temperature and ensure it remains within the specified range.
  • The AD8582AR-REEL is designed to drive a 2 kΩ load and has a recommended input impedance of 1 kΩ to 10 kΩ. To achieve optimal performance, it is recommended to match the input impedance to the source impedance and use a buffer stage if the load impedance is not within the recommended range. Additionally, consider using a voltage follower configuration to minimize the output impedance and ensure maximum bandwidth.
  • To troubleshoot common issues with the AD8582AR-REEL, start by verifying the power supply voltage, input signal, and output load. Check for oscillation by monitoring the output with an oscilloscope and ensure the device is properly decoupled. For noise issues, check the PCB layout, component placement, and ensure proper grounding. For distortion issues, verify the input signal amplitude and frequency, and ensure the device is operating within its specified bandwidth.
  • The AD8582AR-REEL is a sensitive device and requires proper ESD protection and handling procedures to prevent damage. Use an ESD wrist strap or mat, handle the device by the package only, and avoid touching the pins or die. Store the device in an anti-static bag or container, and ensure the PCB and components are properly grounded during assembly and testing.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8582AR-REEL Overview

Use the download button to access the AD8582AR-REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD858, or try a keyword search, such as Digital to Analog Converters
