AD8594ARZ - Analog Devices

Description: Operational Amplifiers

Download AD8594ARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

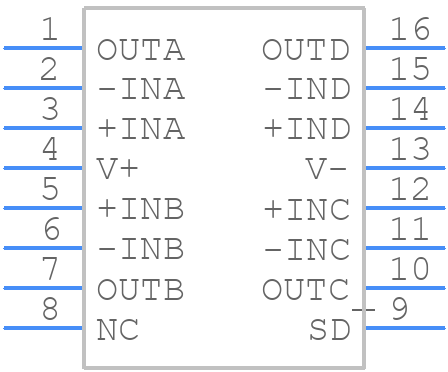

Symbol
AD8594ARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8594ARZ - Analog Devices PCB footprint - Other - Other - SOIC127P600X175-16N
click to zoom
3D Models
AD8594ARZ - Analog Devices - 3D model - Other - SOIC127P600X175-16N
click to zoom

AD8594ARZ Details

  • Manufacturer Part Number:

    AD8594ARZ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.00006 µA

  • Bias Current-Max (IIB) @25C:

    0.05 µA

  • Common-mode Reject Ratio-Min:

    38 dB

  • Common-mode Reject Ratio-Nom:

    45 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    30000 µV

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    3.5 V/us

  • Supply Current-Max:

    7 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    2200

  • Voltage Gain-Min:

    15000

  • Wideband:

    NO

  • Width:

    3.9 mm

AD8594ARZ Frequently Asked Questions (FAQs)

  • A good layout and PCB design for the AD8594ARZ involves keeping the input and output traces short and away from noise sources, using a solid ground plane, and decoupling the power supplies with capacitors. A 4-layer PCB with a dedicated analog ground plane is recommended. See the Analog Devices application note AN-581 for more details.
  • The choice of gain resistors depends on the desired gain, bandwidth, and noise performance. A good starting point is to use the gain resistor values recommended in the datasheet. For non-inverting configurations, use Rf = Rg × (G - 1), where G is the desired gain. For inverting configurations, use Rf = Rg / (G - 1). See the datasheet or application notes for more details.
  • The AD8594ARZ can drive capacitive loads up to 1nF without oscillation or instability. However, it's recommended to use a series resistor (Rs) to dampen the capacitive load and prevent oscillation. A good starting point is Rs = 10-20 ohms. See the datasheet or application notes for more details.
  • To reduce noise and EMI, use a good layout and PCB design, decouple the power supplies, and use shielding or guard rings around the input and output traces. Additionally, consider using a low-pass filter or a ferrite bead to filter out high-frequency noise. See the Analog Devices application note AN-106 for more details.
  • A good power supply decoupling scheme for the AD8594ARZ involves using a 10uF ceramic capacitor in parallel with a 1uF ceramic capacitor, both connected between the power supply pins and ground. This helps to filter out high-frequency noise and reduce power supply ripple.
