AD8597ACPZ-R2 - Analog Devices

Description: Analog Devices AD8597ACPZ-R2 Op Amp, 10MHz Push-Pull, 8-Pin LFCSP

Download AD8597ACPZ-R2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

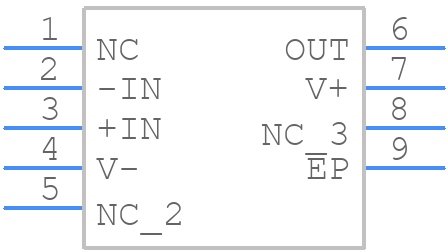

Symbol
AD8597ACPZ-R2 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8597ACPZ-R2 - Analog Devices PCB footprint - Other - Other - DFN300X300X90-9N
click to zoom
3D Models
AD8597ACPZ-R2 - Analog Devices - 3D model - Other - DFN300X300X90-9N
click to zoom

AD8597ACPZ-R2 Details

  • Manufacturer Part Number:

    AD8597ACPZ-R2

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    LFCSP, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-13

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.34 µA

  • Bias Current-Max (IIB) @25C:

    0.21 µA

  • Common-mode Reject Ratio-Min:

    105 dB

  • Common-mode Reject Ratio-Nom:

    135 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    180 µV

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Slew Rate-Nom:

    14 V/us

  • Supply Current-Max:

    6.75 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    10000

  • Voltage Gain-Min:

    100000

  • Wideband:

    NO

  • Width:

    3 mm

AD8597ACPZ-R2 Frequently Asked Questions (FAQs)

  • A good layout and PCB design for the AD8597 involves keeping the input and output traces short and away from noise sources, using a solid ground plane, and decoupling the power supply pins with capacitors. A 4-layer PCB with a dedicated ground plane is recommended. See the Analog Devices application note AN-581 for more details.
  • The gain resistors (Rf and Rg) should be chosen based on the desired gain and bandwidth of the amplifier. A higher gain requires smaller resistors, but may also increase noise and reduce stability. A good starting point is to use 1 kΩ to 10 kΩ resistors and adjust as needed. See the datasheet section on 'Gain Setting Resistors' for more information.
  • The maximum power dissipation of the AD8597 is 1.4 W. To calculate the power dissipation, use the formula: Pd = (Vcc x Icc) + (Vout x Iout), where Vcc is the supply voltage, Icc is the quiescent current, Vout is the output voltage, and Iout is the output current. Make sure to derate the power dissipation based on the ambient temperature and package type.
  • Yes, the AD8597 can be used as a single-supply op-amp. To do so, connect the negative supply pin (V-) to ground, and use a voltage divider to create a virtual ground at half the supply voltage. This will allow the op-amp to operate with a single supply voltage. See the datasheet section on 'Single-Supply Operation' for more details.
  • To reduce noise and EMI, use a low-noise power supply, add decoupling capacitors to the power supply pins, and use shielding or a Faraday cage to enclose the circuit. Additionally, keep the input and output traces short and away from noise sources, and use a common-mode choke or ferrite bead to filter out high-frequency noise.
