AD8643ACPZ-R2 - Analog Devices

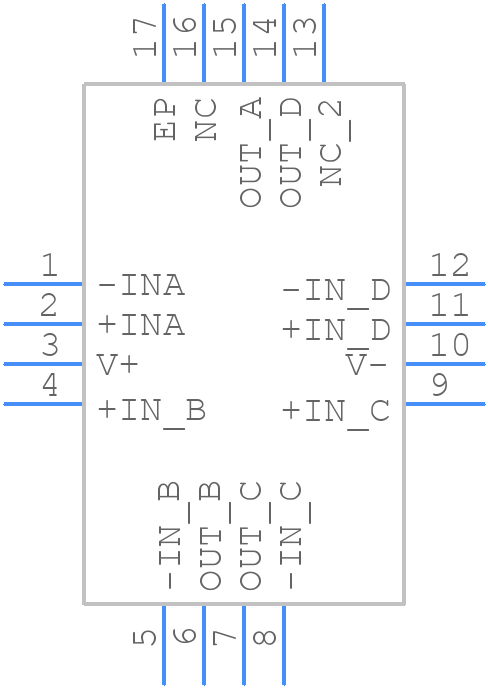

AD8643ACPZ-R2 Details

• Manufacturer Part Number:

  AD8643ACPZ-R2

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  QFN

• Package Description:

  3 X 3 MM, ROHS COMPLIANT, MO-220VEED-2, LFCSP-16

• Pin Count:

  16

• Manufacturer Package Code:

  CP-16-27

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• Amplifier Type:

  OPERATIONAL AMPLIFIER

• Architecture:

  VOLTAGE-FEEDBACK

• Average Bias Current-Max (IIB):

  0.00026 µA

• Bias Current-Max (IIB) @25C:

  0.000001 µA

• Common-mode Reject Ratio-Min:

  90 dB

• Common-mode Reject Ratio-Nom:

  107 dB

• Frequency Compensation:

  YES

• Input Offset Voltage-Max:

  1000 µV

• JESD-30 Code:

  S-XQCC-N16

• JESD-609 Code:

  e3

• Length:

  3 mm

• Low-Bias:

  YES

• Low-Offset:

  NO

• Micropower:

  YES

• Moisture Sensitivity Level:

  3

• Neg Supply Voltage Limit-Max:

  -13.65 V

• Neg Supply Voltage-Nom (Vsup):

  -13 V

• Number of Functions:

  4

• Number of Terminals:

  16

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC16,.12SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Power:

  NO

• Programmable Power:

  NO

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  0.9 mm

• Slew Rate-Nom:

  3 V/us

• Supply Current-Max:

  1.32 mA

• Supply Voltage Limit-Max:

  13.65 V

• Supply Voltage-Nom (Vsup):

  13 V

• Surface Mount:

  YES

• Technology:

  JFET

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Unity Gain BW-Nom:

  3500

• Voltage Gain-Min:

  80000

• Wideband:

  NO

• Width:

  3 mm
