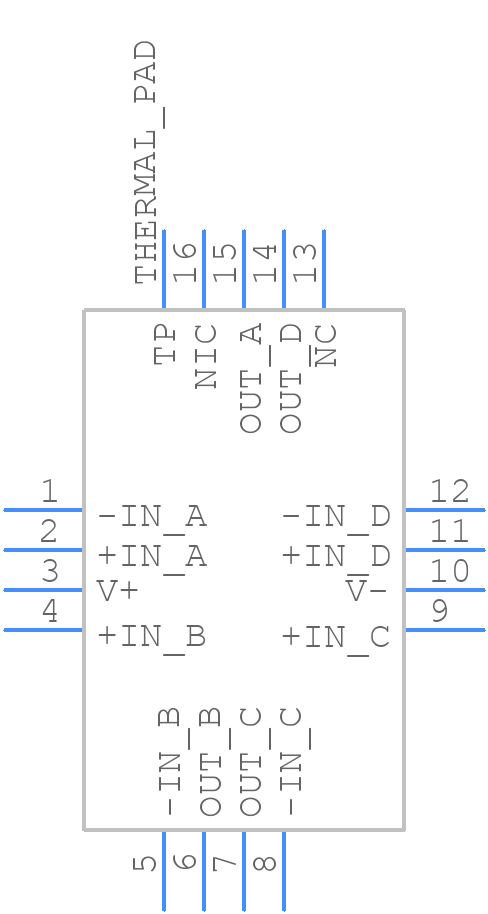

AD8659ACPZ-R7 - Analog Devices

AD8659ACPZ-R7 Details

• Manufacturer Part Number:

  AD8659ACPZ-R7

• Source Url Status Check Date:

  2013-05-01 14:56:29.336

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  QFN

• Package Description:

  LFCSP-16

• Pin Count:

  16

• Manufacturer Package Code:

  CP-16-20

• Country Of Origin:

  South Korea

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Amplifier Type:

  OPERATIONAL AMPLIFIER

• Architecture:

  VOLTAGE-FEEDBACK

• Average Bias Current-Max (IIB):

  0.0026 µA

• Bias Current-Max (IIB) @25C:

  0.00002 µA

• Common-mode Reject Ratio-Min:

  95 dB

• Common-mode Reject Ratio-Nom:

  105 dB

• Frequency Compensation:

  YES

• Input Offset Voltage-Max:

  16000 µV

• JESD-30 Code:

  S-XQCC-N16

• JESD-609 Code:

  e3

• Length:

  4 mm

• Low-Bias:

  YES

• Low-Offset:

  NO

• Micropower:

  YES

• Moisture Sensitivity Level:

  3

• Number of Functions:

  4

• Number of Terminals:

  16

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TR, 7 INCH

• Peak Reflow Temperature (Cel):

  260

• Power:

  NO

• Programmable Power:

  NO

• Seated Height-Max:

  0.8 mm

• Slew Rate-Nom:

  75000 V/us

• Supply Current-Max:

  0.132 mA

• Supply Voltage Limit-Max:

  20.5 V

• Supply Voltage-Nom (Vsup):

  10 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Unity Gain BW-Nom:

  230

• Voltage Gain-Min:

  1780

• Wideband:

  NO

• Width:

  4 mm
