AD8801ARZ - Analog Devices

Description: AD8801ARZ, 8-Bit 8 Bit DAC 8-channel 1.7Msps, SPI, 16-Pin SOIC

Download AD8801ARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

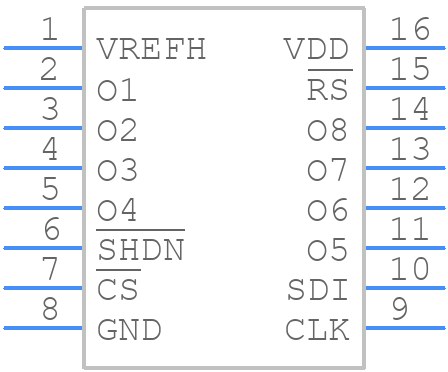

AD8801ARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8801ARZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead Standard Small Outline Package [SOIC_N] Narrow Body+
click to zoom
3D Models
AD8801ARZ - Analog Devices - 3D model - Small Outline Packages - 16-Lead Standard Small Outline Package [SOIC_N] Narrow Body+
click to zoom

AD8801ARZ Details

  • Manufacturer Part Number:

    AD8801ARZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    1.50 MM HEIGHT, SO-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    R-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Linearity Error-Max (EL):

    0.5859%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    8

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Settling Time-Nom (tstl):

    0.6 µs

  • Supply Current-Max:

    4 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

AD8801ARZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the input and output traces short and away from each other. Also, use a low-ESR capacitor for the VCC pin and a 0.1uF capacitor for the AVCC pin.
  • The AD8801ARZ requires a single 5V power supply. Ensure that the power supply is clean and regulated. The power sequencing requirement is to power up the VCC pin first, followed by the AVCC pin. The power-down sequence is the reverse.
  • The recommended clock frequency for the AD8801ARZ is between 10MHz to 40MHz. The clock signal should be a clean, low-jitter signal with a duty cycle of 40% to 60%. A clock signal with excessive jitter or noise can affect the ADC's performance.
  • The AD8801ARZ has a flexible analog input configuration. To optimize it for your application, consider the input signal range, common-mode voltage, and impedance. Use the internal PGA (Programmable Gain Amplifier) to adjust the gain and offset to match your signal requirements.
  • The AD8801ARZ has a maximum junction temperature of 150°C. Ensure good airflow around the device, and use a heat sink if necessary. Follow proper PCB design and layout practices to minimize thermal resistance. Operate the device within the recommended temperature range of -40°C to 125°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8801ARZ Overview

Use the download button to access the AD8801ARZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD880, or try a keyword search, such as Digital to Analog Converters
