AD8802ARUZ - Analog Devices

Description: Analog Devices AD8802ARUZ, 12-channel 8 bit Serial DAC, 1.7Msps, 20-Pin TSSOP

Download AD8802ARUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

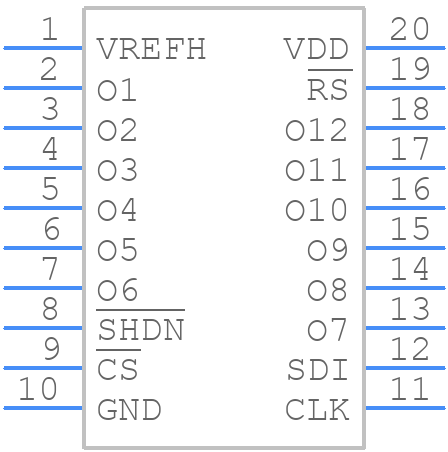

AD8802ARUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8802ARUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-20 (TSSOP)_1
click to zoom
3D Models
AD8802ARUZ - Analog Devices - 3D model - Small Outline Packages - RU-20 (TSSOP)_1
click to zoom

AD8802ARUZ Details

  • Manufacturer Part Number:

    AD8802ARUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    1 MM HEIGHT, TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RU-20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Linearity Error-Max (EL):

    0.5859%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    12

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Nom (tstl):

    0.6 µs

  • Supply Current-Max:

    4 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD8802ARUZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8802ARUZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog layer, a dedicated digital layer, and two power planes.
  • The AD8802ARUZ requires a single 3.3V power supply. It's recommended to use a low-dropout linear regulator (LDO) to power the device. The power sequencing requirement is to power up the analog supply (VCCA) before the digital supply (VCCD).
  • The recommended clock frequency for the AD8802ARUZ is 10 MHz to 40 MHz. The clock signal should have a low jitter (less than 100 ps) and a stable frequency to ensure optimal performance.
  • The AD8802ARUZ has a programmable gain amplifier (PGA) that can be configured for different gain settings using the GAIN[2:0] pins. The available gain options are 1, 2, 4, 8, 16, 32, and 64.
  • The AD8802ARUZ has a programmable filter that can be configured as a low-pass, high-pass, band-pass, or band-stop filter. The filter coefficients can be programmed using the SPI interface. The recommended filter configuration depends on the specific application requirements.
