AD8803ARZ - Analog Devices

Description: AD8803ARZ, 8 bit-Bit DAC 8-channel 1.7Msps, SPI, 16-Pin SOIC

Download AD8803ARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

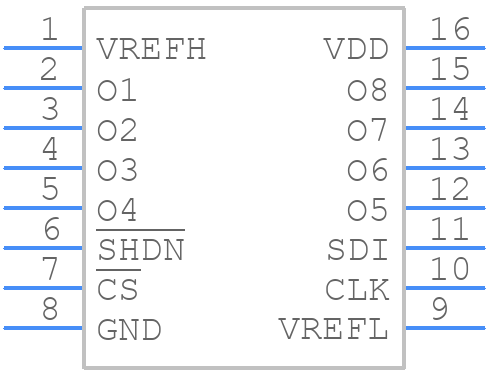

AD8803ARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8803ARZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Pin Narrow Body SOIC Package (R-16A)
click to zoom
3D Models
AD8803ARZ - Analog Devices - 3D model - Small Outline Packages - 16-Pin Narrow Body SOIC Package (R-16A)
click to zoom

AD8803ARZ Details

  • Manufacturer Part Number:

    AD8803ARZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    1.50 MM HEIGHT, SO-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    R-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Linearity Error-Max (EL):

    0.5859%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    8

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Settling Time-Nom (tstl):

    0.6 µs

  • Supply Current-Max:

    4 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

AD8803ARZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the AD8803ARZ involves separating analog and digital grounds, using a solid ground plane, and keeping sensitive analog signals away from noisy digital signals. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help to reduce noise and improve performance.
  • The AD8803ARZ requires a single 3.3V power supply, and it's recommended to use a low-dropout linear regulator (LDO) to power the device. The power sequencing requirement is to power up the analog supply (VCC) before the digital supply (VDD). It's also recommended to add decoupling capacitors close to the power pins to filter out noise.
  • The recommended clock frequency for the AD8803ARZ is between 10 MHz to 40 MHz. The clock signal quality is critical, and it's recommended to use a clock signal with a low jitter (less than 100 ps) and a signal amplitude of at least 2.5V.
  • The AD8803ARZ has a programmable gain amplifier (PGA) that can be configured for different gain settings using the GAIN pin. The gain settings range from 0 dB to 60 dB in 1 dB increments. The trade-offs for higher gain settings include increased noise and decreased bandwidth.
  • The AD8803ARZ is a high-frequency device and can be susceptible to electromagnetic interference (EMI) and radio-frequency interference (RFI). To minimize their impact, it's recommended to use shielding, filtering, and grounding techniques, such as using a metal shield around the device, adding EMI filters, and using a solid ground plane.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8803ARZ Overview

Use the download button to access the AD8803ARZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD880, or try a keyword search, such as Digital to Analog Converters
