AD8804ARZ - Analog Devices

Description: AD8804ARZ, 8 bit-Bit DAC 12-channel 1.7Msps, SPI, 20-Pin SOIC W

Download AD8804ARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

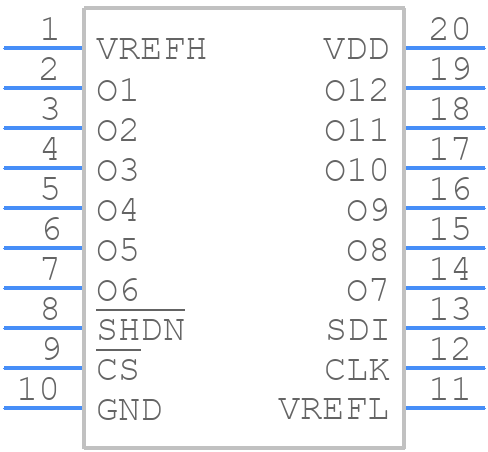

Symbol
AD8804ARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD8804ARZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-20 (SOIC)_1
click to zoom
3D Models
AD8804ARZ - Analog Devices - 3D model - Small Outline Packages - R-20 (SOIC)_1
click to zoom

AD8804ARZ Details

  • Manufacturer Part Number:

    AD8804ARZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RW-24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Linearity Error-Max (EL):

    0.5859%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    12

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Settling Time-Nom (tstl):

    0.6 µs

  • Supply Current-Max:

    4 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

AD8804ARZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD8804ARZ involves separating analog and digital grounds, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, keeping the input and output traces short and away from each other can help reduce noise and improve performance.
  • The AD8804ARZ requires a single 3.3V or 5V power supply. It's essential to ensure that the power supply is clean and well-regulated. Power sequencing is not critical, but it's recommended to power up the device after the power supply has stabilized. A soft-start circuit can be used to reduce inrush current during power-up.
  • The recommended operating temperature range for the AD8804ARZ is -40°C to +125°C. Temperature affects the device's performance, with increased temperature causing a slight decrease in accuracy and increased noise. However, the device is designed to operate within specifications across the entire temperature range.
  • To troubleshoot issues with the AD8804ARZ, start by verifying the power supply and input voltages. Check for proper PCB layout and decoupling. Use an oscilloscope to inspect the output waveforms and look for signs of oscillation or noise. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • The AD8804ARZ is suitable for high-reliability and safety-critical applications. It meets various certifications, including Automotive AEC-Q100, Industrial IEC 60601-1, and Aerospace DO-160. Consult the datasheet and Analog Devices' website for specific compliance information and certifications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD8804ARZ Overview

Use the download button to access the AD8804ARZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD880, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
