AD9082BBPZ-2D2AC - Analog Devices

Description: Analog Front End - AFE MxFE Dual 12 Gsps RFDAC Quad 4Gsps RFADC

Download AD9082BBPZ-2D2AC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD9082BBPZ-2D2AC - Analog Devices - PCB symbol
click to zoom
PCB Footprints

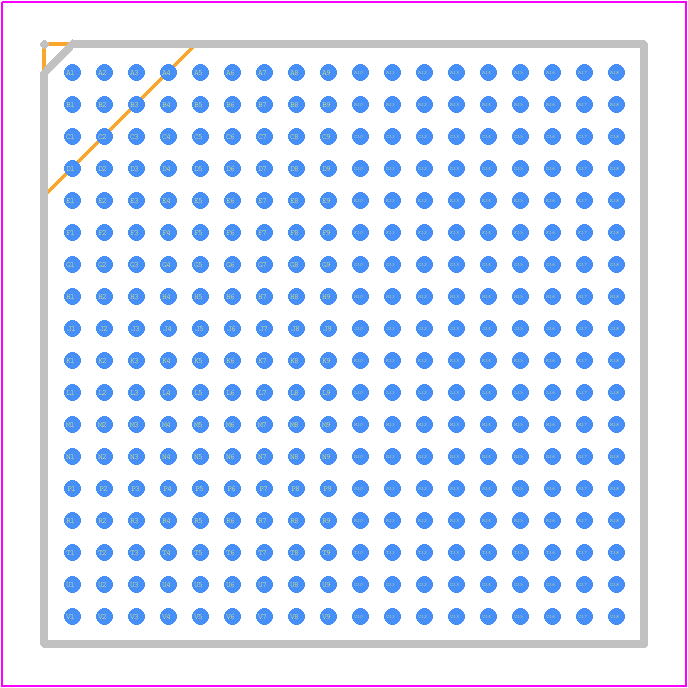

AD9082BBPZ-2D2AC - Analog Devices PCB footprint - BGA - BGA - BP-324-3
click to zoom
3D Models
AD9082BBPZ-2D2AC - Analog Devices - 3D model - BGA - BP-324-3
click to zoom

AD9082BBPZ-2D2AC Details

  • Manufacturer Part Number:

    AD9082BBPZ-2D2AC

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-324

  • Pin Count:

    324

  • Manufacturer Package Code:

    BP-324-3

  • ECCN Code:

    3A001.A.5.A.3

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    IT CAN ALSO OPERATE WITH 1.8 AND 2 V

  • JESD-30 Code:

    S-PBGA-B324

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    324

  • Operating Temperature-Max:

    120 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA324,18X18,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Packing Method:

    TRAY

  • Seated Height-Max:

    1.72 mm

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    15 mm

AD9082BBPZ-2D2AC Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a dedicated ground plane and a solid power plane is recommended. The device should be placed near the center of the board, and the analog and digital sections should be separated to minimize noise coupling.
  • Use a high-quality clock source, such as a crystal oscillator, and ensure that the clock signal is properly terminated and routed. The device's clock input should be driven differentially, and the clock frequency should be set to the recommended value of 122.88 MHz.
  • The device has a maximum junction temperature of 125°C. Ensure good airflow around the device, and consider using a heat sink or thermal interface material to reduce thermal resistance. Avoid blocking the airflow around the device with components or obstacles.
  • Use a high-quality analog input signal, ensure proper signal termination, and minimize noise coupling between the analog and digital sections. Also, ensure that the device's analog power supply is well-regulated and decoupled.
  • Use a shielded enclosure, ensure good grounding and bonding, and minimize loop areas in the PCB layout. Also, consider using EMI filters or shielding on the analog and digital interfaces.
