AD9102BCPZRL7 - Analog Devices

Description: Direct Digital Synthesizer 180MHz 1-DAC 14bit Serial (3-Wire, 4-Wire, SPI) Automotive 32-Pin LFCSP EP T/R

Download AD9102BCPZRL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

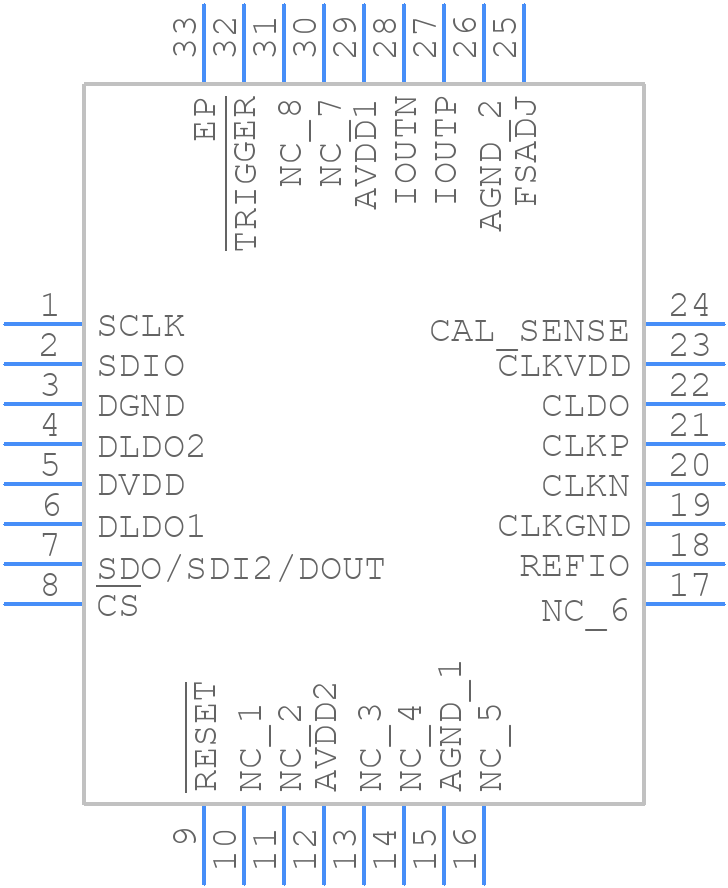

Symbol
AD9102BCPZRL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9102BCPZRL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-12
click to zoom
3D Models
AD9102BCPZRL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-12
click to zoom

AD9102BCPZRL7 Details

  • Manufacturer Part Number:

    AD9102BCPZRL7

  • Source Url Status Check Date:

    2013-05-01 14:56:29.706

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-12

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    1 V

  • Analog Output Voltage-Min:

    -0.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Nom (tstl):

    0.0312 µs

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

AD9102BCPZRL7 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the AD9102BCPZRL7 can be found in the AD9102 Evaluation Board documentation, which provides a detailed layout guide and Gerber files for reference. Additionally, Analog Devices provides a PCB layout checklist in the AD9102 datasheet that highlights key considerations for signal integrity, power supply decoupling, and thermal management.
  • To optimize the performance of the AD9102BCPZRL7, it's essential to carefully review the datasheet and understand the device's specifications and limitations. Additionally, Analog Devices provides application notes, design guides, and simulation models that can help engineers optimize the device's performance in their specific application. It's also recommended to consult with Analog Devices' technical support team for personalized guidance.
  • The AD9102BCPZRL7 has a maximum junction temperature (TJ) of 150°C. To ensure reliable operation, it's essential to implement proper thermal management techniques, such as using a heat sink, thermal interface material, and ensuring good airflow around the device. The AD9102 datasheet provides thermal resistance values and a thermal model that can be used to estimate the device's junction temperature in a given application.
  • The AD9102BCPZRL7 is not specifically designed or qualified for radiation-hardened or high-reliability applications. However, Analog Devices offers a range of radiation-hardened and high-reliability products that are designed to meet the stringent requirements of aerospace, defense, and industrial applications. Engineers should consult with Analog Devices' technical support team to determine the most suitable device for their specific application.
  • To troubleshoot issues with the AD9102BCPZRL7, engineers should start by reviewing the datasheet and application notes to ensure that the device is properly configured and operated within its specifications. Analog Devices also provides a range of debugging tools, such as evaluation boards and simulation models, that can help identify and isolate issues. Additionally, engineers can consult with Analog Devices' technical support team for personalized guidance and support.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD9102BCPZRL7 Overview

Use the download button to access the AD9102BCPZRL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD910, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
