AD9116BCPZ - Analog Devices

Description: Analog Devices AD9116BCPZ, 2-channel 12 bit Serial DAC, 125Msps, 40-Pin LFCSP VQ

Download AD9116BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

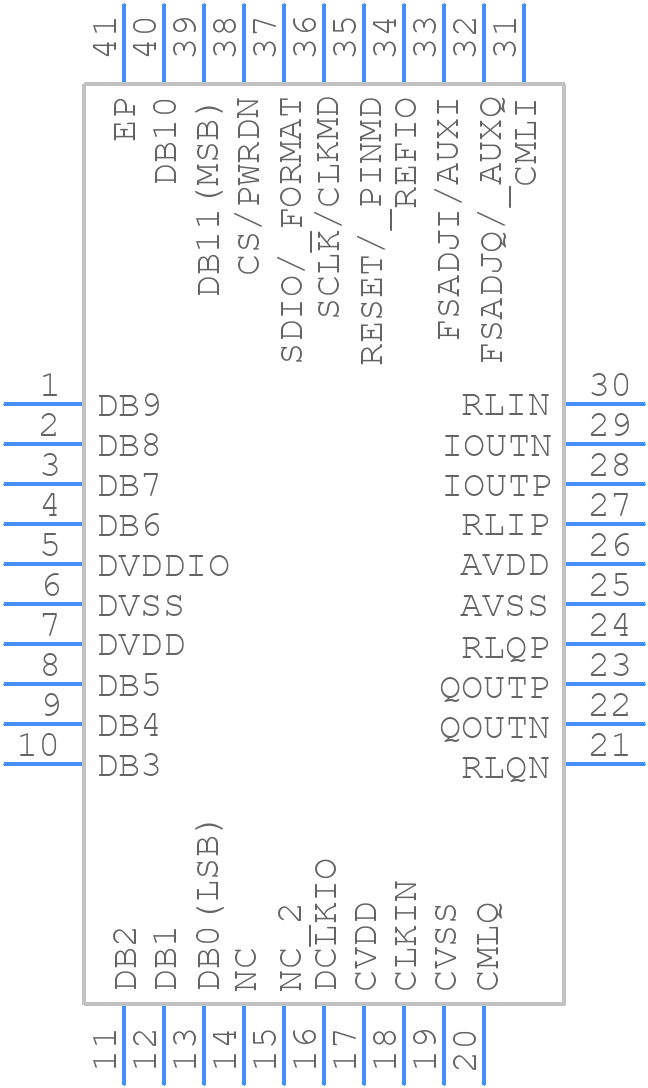

AD9116BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9116BCPZ - Analog Devices PCB footprint - Other - Other - QFN50P600X600X100-41N
click to zoom
3D Models
AD9116BCPZ - Analog Devices - 3D model - Other - QFN50P600X600X100-41N
click to zoom

AD9116BCPZ Details

  • Manufacturer Part Number:

    AD9116BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-1

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    3.25 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, 2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL, PARALLEL, WORD

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Linearity Error-Max (EL):

    0.0166%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Settling Time-Nom (tstl):

    11.5 µs

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

AD9116BCPZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star topology for the power supply connections and keep the power supply traces away from the analog signals.
  • To optimize for low power consumption, use the lowest possible clock frequency, disable the internal voltage regulator, and use the power-down mode when not in use. Additionally, use a low-power mode for the ADC and DAC, and consider using an external voltage regulator with a low quiescent current.
  • The recommended calibration procedure involves a full-scale calibration, a zero-scale calibration, and a gain calibration. The full-scale calibration involves applying a full-scale input signal and adjusting the internal calibration registers. The zero-scale calibration involves applying a zero-scale input signal and adjusting the internal offset registers. The gain calibration involves applying a known input signal and adjusting the internal gain registers.
  • To troubleshoot common issues, first check the power supply voltage and ensure it is within the recommended range. Check the clock frequency and ensure it is within the recommended range. Check the input signal amplitude and ensure it is within the recommended range. Check the PCB layout for noise coupling and ensure that the analog and digital grounds are separate. Use an oscilloscope to check the output signal and ensure it is not clipped or distorted.
  • The recommended method for synchronizing multiple AD9116BCPZ devices is to use a common clock source and to synchronize the devices using the SYNC pin. Ensure that the clock source is stable and has a low jitter. Use a clock distribution network to ensure that the clock signal is distributed evenly to all devices.
