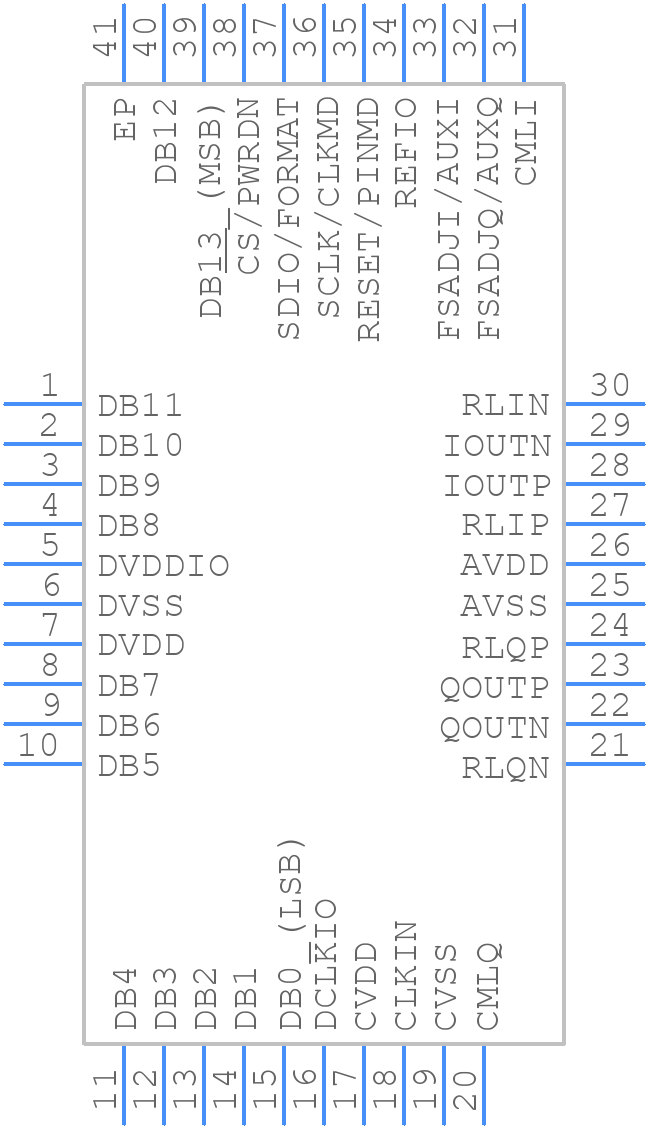

AD9117BCPZN - Analog Devices

AD9117BCPZN Details

• Manufacturer Part Number:

  AD9117BCPZN

• Source Url Status Check Date:

  2013-05-01 14:56:29.732

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  LFCSP-40

• Pin Count:

  40

• Manufacturer Package Code:

  CP-40-9

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Analog Output Voltage-Max:

  1.5 V

• Analog Output Voltage-Min:

  0.8 V

• Converter Type:

  D/A CONVERTER

• Input Bit Code:

  BINARY, 2'S COMPLEMENT BINARY

• Input Format:

  SERIAL

• JESD-30 Code:

  S-XQCC-N40

• JESD-609 Code:

  e4

• Length:

  6 mm

• Linearity Error-Max (EL):

  0.011%

• Moisture Sensitivity Level:

  3

• Number of Bits:

  14

• Number of Functions:

  1

• Number of Terminals:

  40

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC40,.24SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  0.8 mm

• Settling Time-Nom (tstl):

  0.0115 µs

• Supply Voltage-Nom:

  1.8 V

• Surface Mount:

  YES

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  6 mm
