AD9119BBCZ - Analog Devices

Description: DAC update rate: up to 5.7 GSPS Direct RF synthesis at 2.85 GSPS data rate DC to 1.425 GHz in baseband mode DC to 1.0 GHz in 2× interpolation mode 1.425 GHz to 4.2 GHz in Mix-Mode Bypassable 2× interpolation Excellent dynamic performance Supports DOCSIS 3.0 wideband ACLR/harmonic performance 8 QAM carriers: ACLR > 65 dBc Industry-leading single/multicarrier IF or RF synthesis 4-carrier W-CDMA ACLR at 2457.6 MSPS fOUT = 900 MHz, ACLR = 71 dBc (baseband mode) fOUT = 2100 MHz, ACLR = 68 dBc (Mix-Mo

Download AD9119BBCZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD9119BBCZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

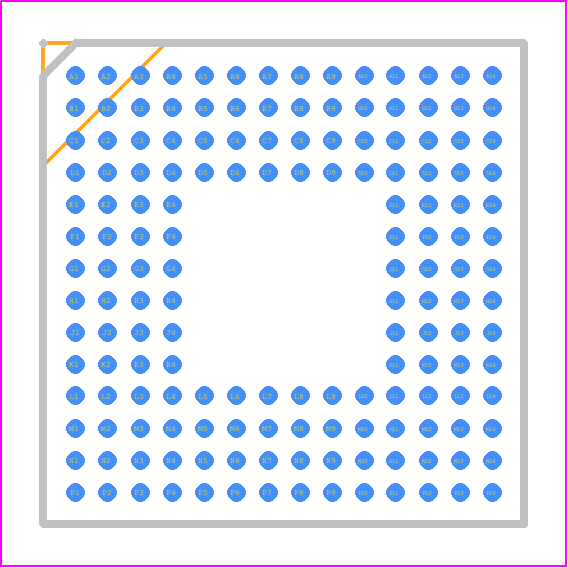

AD9119BBCZ - Analog Devices PCB footprint - BGA - BGA - BC-160-1
click to zoom
3D Models
AD9119BBCZ - Analog Devices - 3D model - BGA - BC-160-1
click to zoom

AD9119BBCZ Details

  • Manufacturer Part Number:

    AD9119BBCZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Package Description:

    CSPBGA-160

  • Pin Count:

    160

  • Manufacturer Package Code:

    BC-160-1

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Output Voltage-Max:

    2.5 V

  • Analog Output Voltage-Min:

    1.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    S-PBGA-B160

  • JESD-609 Code:

    e1

  • Length:

    12 mm

  • Moisture Sensitivity Level:

    3

  • Negative Supply Voltage-Nom:

    -1.5 V

  • Number of Bits:

    11

  • Number of Functions:

    1

  • Number of Terminals:

    160

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA160,14X14,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.4 mm

  • Settling Time-Nom (tstl):

    0.013 µs

  • Supply Current-Max:

    327 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    12 mm

AD9119BBCZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star topology for the power supply connections and keep the signal traces short and direct.
  • To optimize for low power consumption, use the lowest possible clock frequency, disable the internal voltage regulator, and use the power-down mode when not in use. Additionally, use a low-power mode for the ADC and DAC, and consider using an external voltage regulator with a low quiescent current.
  • The recommended calibration procedure involves a full-scale calibration, followed by a zero-scale calibration. The full-scale calibration involves applying a full-scale input signal and adjusting the offset and gain to achieve the desired output. The zero-scale calibration involves applying a zero-scale input signal and adjusting the offset to achieve the desired output.
  • To troubleshoot common issues, first check the power supply voltage and ensure it is within the recommended range. Verify that the clock frequency is within the recommended range and that the device is properly configured. Check the signal integrity and ensure that the input signals are within the recommended range. Use a logic analyzer or oscilloscope to verify the digital signals and ensure that the device is communicating correctly.
  • The AD9119BBCZ has a maximum junction temperature of 150°C. Ensure good thermal conductivity between the device and the PCB, and use a heat sink if necessary. Keep the device away from heat sources and ensure good airflow. Use thermal simulation tools to estimate the junction temperature and ensure that it remains within the recommended range.
