AD9119BBCZRL - Analog Devices

Description: DAC update rate: up to 5.7 GSPS Direct RF synthesis at 2.85 GSPS data rate DC to 1.425 GHz in baseband mode DC to 1.0 GHz in 2× interpolation mode 1.425 GHz to 4.2 GHz in Mix-Mode Bypassable 2× interpolation Excellent dynamic performance Supports DOCSIS 3.0 wideband ACLR/harmonic performance 8 QAM carriers: ACLR > 65 dBc Industry-leading single/multicarrier IF or RF synthesis 4-carrier W-CDMA ACLR at 2457.6 MSPS fOUT = 900 MHz, ACLR = 71 dBc (baseband mode) fOUT = 2100 MHz, ACLR = 68 dBc (Mix-Mo

Download AD9119BBCZRL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD9119BBCZRL - Analog Devices - PCB symbol
click to zoom
PCB Footprints

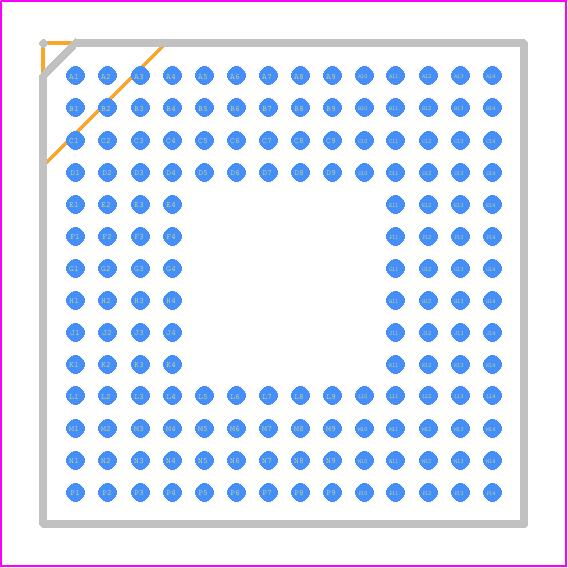

AD9119BBCZRL - Analog Devices PCB footprint - BGA - BGA - BC-160-1
click to zoom
3D Models
AD9119BBCZRL - Analog Devices - 3D model - BGA - BC-160-1
click to zoom

AD9119BBCZRL Details

  • Manufacturer Part Number:

    AD9119BBCZRL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Package Description:

    CSPBGA-160

  • Pin Count:

    160

  • Manufacturer Package Code:

    BC-160-1

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Output Voltage-Max:

    2.5 V

  • Analog Output Voltage-Min:

    1.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    S-PBGA-B160

  • JESD-609 Code:

    e1

  • Length:

    12 mm

  • Moisture Sensitivity Level:

    3

  • Negative Supply Voltage-Nom:

    -1.5 V

  • Number of Bits:

    11

  • Number of Functions:

    1

  • Number of Terminals:

    160

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA160,14X14,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.4 mm

  • Settling Time-Nom (tstl):

    0.013 µs

  • Supply Current-Max:

    327 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    12 mm

AD9119BBCZRL Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star topology for the power supply connections and keep the signal traces short and away from the power supply lines.
  • To ensure accurate temperature measurement, calibrate the device using the on-chip calibration registers. Also, ensure that the thermal pad is properly connected to a heat sink or a thermal interface material to dissipate heat efficiently. Avoid exposing the device to extreme temperatures during storage or operation.
  • The maximum clock frequency for the SPI interface is 20 MHz. However, it's recommended to operate at a lower frequency (e.g., 10 MHz) to ensure reliable data transfer and to minimize electromagnetic interference (EMI).
  • The AD9119BBCZRL has a built-in POR and BOR circuitry. To handle these reset events, use an external capacitor (e.g., 10 nF) connected between the POR/BOR pin and ground. This capacitor helps to filter out noise and ensures a clean reset signal. Also, ensure that the power supply voltage is stable and within the recommended operating range.
  • Use a combination of ceramic and electrolytic capacitors for power supply decoupling. A 10 μF ceramic capacitor and a 10 μF electrolytic capacitor in parallel, placed close to the device's power supply pins, can help to filter out noise and ensure a stable power supply.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD9119BBCZRL Overview

Use the download button to access the AD9119BBCZRL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD911, or try a keyword search, such as Digital to Analog Converters
