The recommended PCB layout and routing for the AD9166BBPZ involves using a 4-layer PCB with a solid ground plane, separating analog and digital signals, and using shielded cables for clock and data lines. A detailed layout guide is available in the AD9166BBPZ evaluation board documentation.
To optimize the performance of the AD9166BBPZ, ensure proper PCB layout and routing, use a high-quality clock source, and optimize the analog supply voltage and temperature. Additionally, adjust the digital gain and offset calibration, and use the built-in calibration modes to optimize SFDR and SNR.
The AD9166BBPZ supports a maximum data rate of 12 GSPS and a bandwidth of up to 6 GHz, making it suitable for high-speed data conversion applications.
The AD9166BBPZ can be interfaced with an FPGA or ASIC using a parallel or serial interface. The device supports JESD204B and LVDS interfaces, and a detailed interface guide is available in the AD9166BBPZ datasheet and application notes.
The AD9166BBPZ has a typical power consumption of 3.5 W at 12 GSPS, and a maximum junction temperature of 125°C. Proper thermal management involves using a heat sink, ensuring good airflow, and following the recommended PCB layout and routing guidelines.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AD9166BBPZ Overview

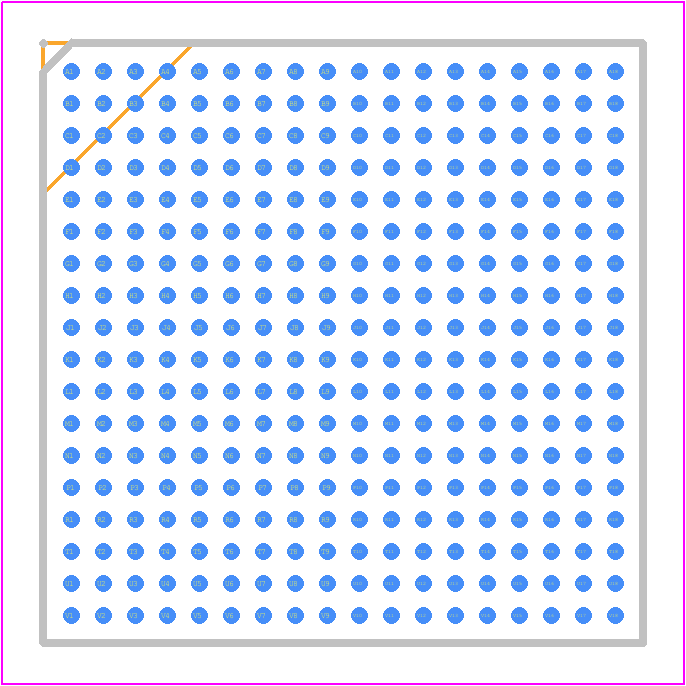

Use the download button to access the AD9166BBPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD916,
or try a keyword search, such as Digital to Analog Converters
