AD9271BSVZ-40 Frequently Asked Questions (FAQs)

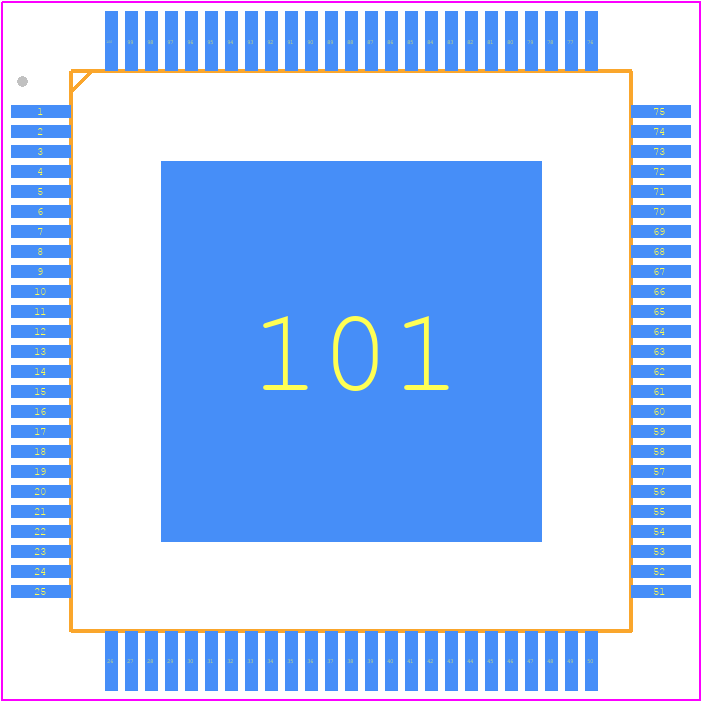

• What is the recommended PCB layout for the AD9271BSVZ-40?
  A good PCB layout for the AD9271BSVZ-40 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
• How do I optimize the performance of the AD9271BSVZ-40 in a noisy environment?
  To optimize the performance of the AD9271BSVZ-40 in a noisy environment, use shielding, filtering, and grounding techniques to minimize electromagnetic interference (EMI). Additionally, use a low-pass filter at the input to reduce high-frequency noise, and consider using a ferrite bead or a common-mode choke to filter out high-frequency noise.
• What is the maximum clock frequency that the AD9271BSVZ-40 can support?
  The AD9271BSVZ-40 can support clock frequencies up to 80 MHz, but the maximum clock frequency may vary depending on the specific application and the quality of the clock signal. It's recommended to consult the datasheet and application notes for more information.
• How do I program the AD9271BSVZ-40 for different gain settings?
  The AD9271BSVZ-40 has a programmable gain amplifier (PGA) that can be programmed using the SPI interface. The gain settings can be programmed using the PGA gain control register, and the gain can be set to one of eight possible values ranging from 1 to 128.
• What is the power consumption of the AD9271BSVZ-40?
  The power consumption of the AD9271BSVZ-40 depends on the specific operating conditions, but typically it consumes around 150 mW of power when operating at a clock frequency of 40 MHz. The power consumption can be reduced by using the power-down mode or by reducing the clock frequency.
