AD9271BSVZ-50 - Analog Devices

Description: ANALOG DEVICES - AD9271BSVZ-50 - LNA/VGA/AAF/ADC/CROSSPOINT SW, HTQFP-100

Download AD9271BSVZ-50 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD9271BSVZ-50 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

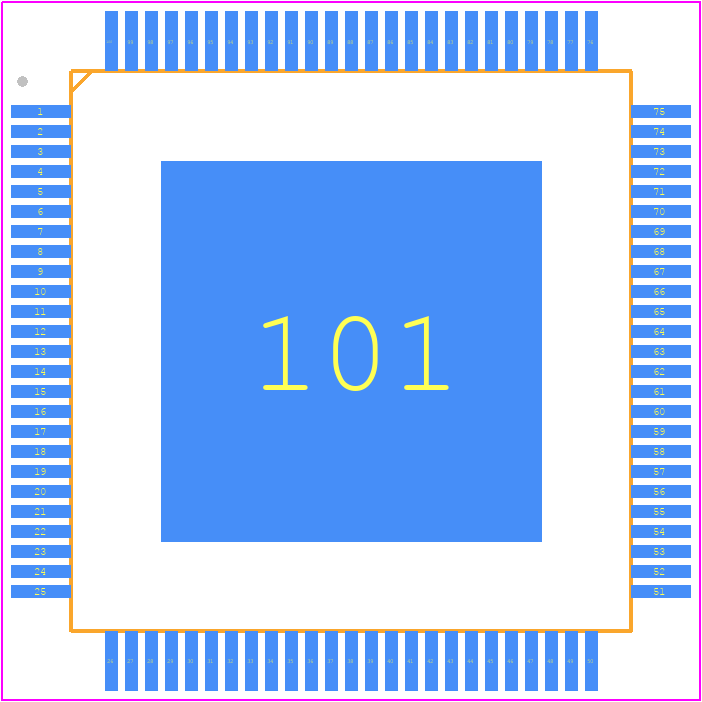

AD9271BSVZ-50 - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - SV-100-3 (TQFP)
click to zoom
3D Models
AD9271BSVZ-50 - Analog Devices - 3D model - Quad Flat Packages - SV-100-3 (TQFP)
click to zoom

AD9271BSVZ-50 Details

  • Manufacturer Part Number:

    AD9271BSVZ-50

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    16 X 16 MM, ROHS COMPLIANT, MS-026AED-HD, TQFP-100

  • Pin Count:

    100

  • Manufacturer Package Code:

    SV-100-3

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PQFP-G100

  • JESD-609 Code:

    e3

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    100

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    1.9 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    14 mm

AD9271BSVZ-50 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the AD9271BSVZ-50 can be found in the AD9271 Evaluation Board documentation, which provides a detailed layout guide and Gerber files for reference. Additionally, Analog Devices provides a PCB layout checklist in the AD9271 datasheet that highlights key considerations for signal integrity, power supply decoupling, and thermal management.
  • To optimize the performance of the AD9271BSVZ-50, it's essential to carefully consider the system-level requirements, such as signal frequency, amplitude, and impedance. Analog Devices provides an AD9271 Design and Integration Guide that offers guidance on optimizing the device's performance in various applications, including ultrasound, radar, and lidar systems.
  • The AD9271BSVZ-50 is specified to operate over a temperature range of -40°C to +85°C. However, it's essential to note that the device's performance may degrade at higher temperatures, and thermal management is critical to ensure reliable operation. Analog Devices provides thermal management guidelines in the AD9271 datasheet and application notes.
  • Analog Devices provides a comprehensive troubleshooting guide for the AD9271BSVZ-50, which covers common issues such as noise, distortion, and signal integrity problems. The guide offers step-by-step procedures for identifying and resolving these issues, as well as recommendations for optimizing the device's performance.
  • The AD9271BSVZ-50 requires careful power supply decoupling and filtering to ensure reliable operation and minimize noise. Analog Devices recommends using a combination of ceramic capacitors, ferrite beads, and LC filters to decouple the power supply and filter out noise. The AD9271 datasheet and application notes provide detailed guidance on power supply decoupling and filtering techniques.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD9271BSVZ-50 Overview

Use the download button to access the AD9271BSVZ-50 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD927, or try a keyword search, such as Other Signal Circuits
