AD9272BSVZ-80 - Analog Devices

Description: AD9272BSVZ-80, Crosspoint Switch, 8 x 8, 100-Pin TQFP EP

Download AD9272BSVZ-80 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD9272BSVZ-80 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

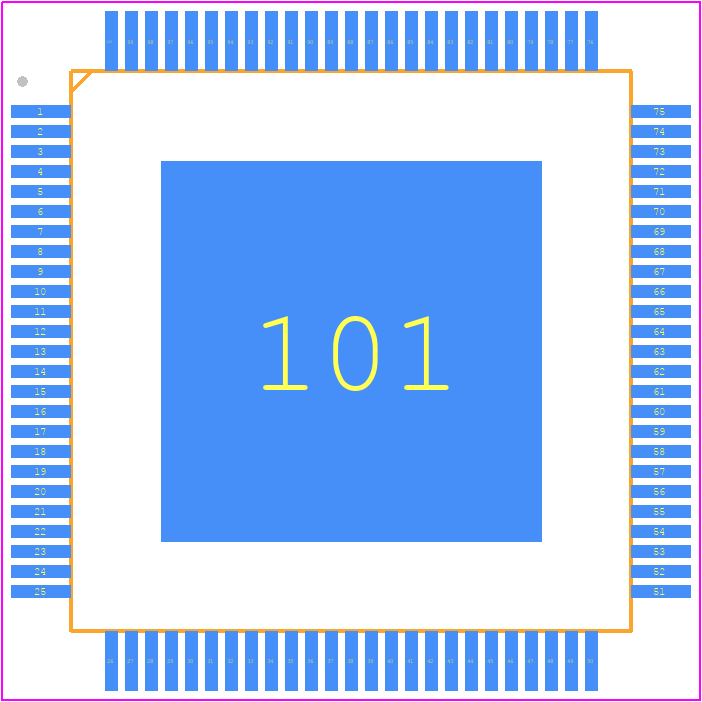

AD9272BSVZ-80 - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - SV-100-3 (TQFP)
click to zoom
3D Models
AD9272BSVZ-80 - Analog Devices - 3D model - Quad Flat Packages - SV-100-3 (TQFP)
click to zoom

AD9272BSVZ-80 Details

  • Manufacturer Part Number:

    AD9272BSVZ-80

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    ROHS COMPLIANT, MS-026AEDHD, TQFP-100

  • Pin Count:

    100

  • Manufacturer Package Code:

    SV-100-3

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    CROSS POINT SWITCH

  • JESD-30 Code:

    S-PQFP-G100

  • JESD-609 Code:

    e3

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    100

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    QFP100,.63SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    1.9 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    14 mm

AD9272BSVZ-80 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep analog and digital signals separate, and use shielding and filtering to minimize noise.
  • Use a combination of ceramic and electrolytic capacitors for power supply decoupling. Place a 10uF ceramic capacitor close to the power pin, and a 10uF electrolytic capacitor further away. Ensure the capacitors are connected to a solid ground plane.
  • A differential clock signal with a frequency of 80MHz to 160MHz is recommended. Use a clock signal with a low jitter (<100ps) and a signal amplitude of 1V to 2V. Ensure the clock signal is properly terminated and shielded to minimize noise.
  • Use the AD9272BSVZ-80's internal gain and offset calibration registers to optimize performance. Set the gain to 1x or 2x depending on the application, and adjust the offset to center the output signal around 0V.
  • The AD9272BSVZ-80 uses a CMOS-compatible digital output. Use a low-voltage differential signaling (LVDS) interface protocol for high-speed data transmission. Ensure data integrity by using a reliable clock signal, and implementing error detection and correction mechanisms.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD9272BSVZ-80 Overview

Use the download button to access the AD9272BSVZ-80 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD927, or try a keyword search, such as Multiplexers or Switches
