AD9272BSVZRL-80 - Analog Devices

Description: Analog to Digital Converters - ADC 12-Bit 80 MSPS Octal

Download AD9272BSVZRL-80 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD9272BSVZRL-80 - Analog Devices - PCB symbol
click to zoom

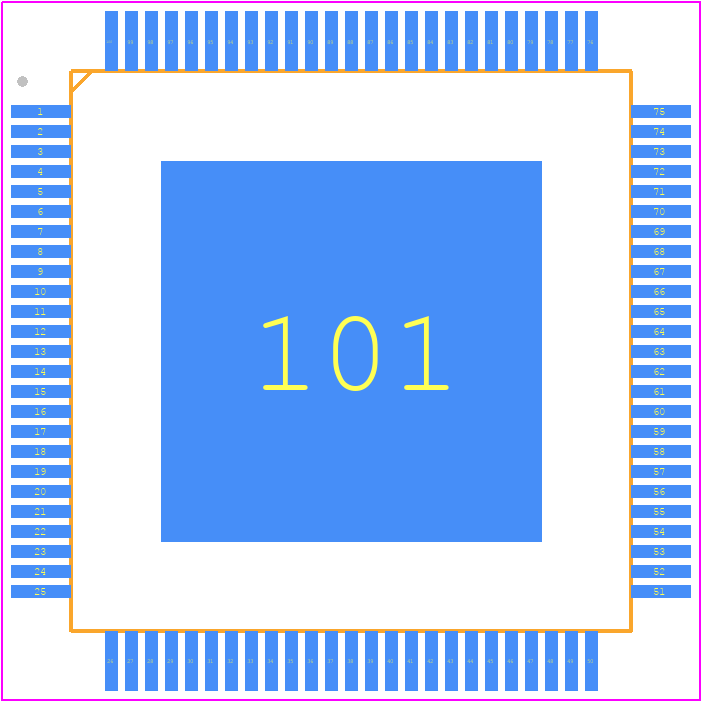

PCB Footprints
AD9272BSVZRL-80 - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - SV-100-3 (TQFP)
click to zoom
3D Models
AD9272BSVZRL-80 - Analog Devices - 3D model - Quad Flat Packages - SV-100-3 (TQFP)
click to zoom

AD9272BSVZRL-80 Details

  • Manufacturer Part Number:

    AD9272BSVZRL-80

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    ROHS COMPLIANT, MS-026AEDHD, TQFP-100

  • Pin Count:

    100

  • Manufacturer Package Code:

    SV-100-3

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    CROSS POINT SWITCH

  • JESD-30 Code:

    S-PQFP-G100

  • JESD-609 Code:

    e3

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    100

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    QFP100,.63SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    1.9 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    14 mm

AD9272BSVZRL-80 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the AD9272BSVZRL-80 can be found in the AD9272 Evaluation Board documentation, which provides a detailed layout guide and Gerber files for reference.
  • To optimize the performance of the AD9272BSVZRL-80, it is recommended to follow the application notes and design guidelines provided by Analog Devices, and to consult with their technical support team for specific guidance on your application.
  • The AD9272BSVZRL-80 has an operating temperature range of -40°C to +85°C, but it is recommended to consult the datasheet and reliability report for more detailed information on temperature-related specifications and limitations.
  • The AD9272BSVZRL-80 is not specifically designed or qualified for radiation-hardened or high-reliability applications. For such applications, it is recommended to consult with Analog Devices' technical support team to discuss alternative solutions or custom designs.
  • The typical power consumption of the AD9272BSVZRL-80 is around 1.2W, but this can vary depending on the specific operating conditions and application. It is recommended to consult the datasheet and evaluate the power consumption in your specific design.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD9272BSVZRL-80 Overview

Use the download button to access the AD9272BSVZRL-80 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD927, or try a keyword search, such as Multiplexers or Switches
