AD9276BSVZ - Analog Devices

AD9276BSVZ Frequently Asked Questions (FAQs)

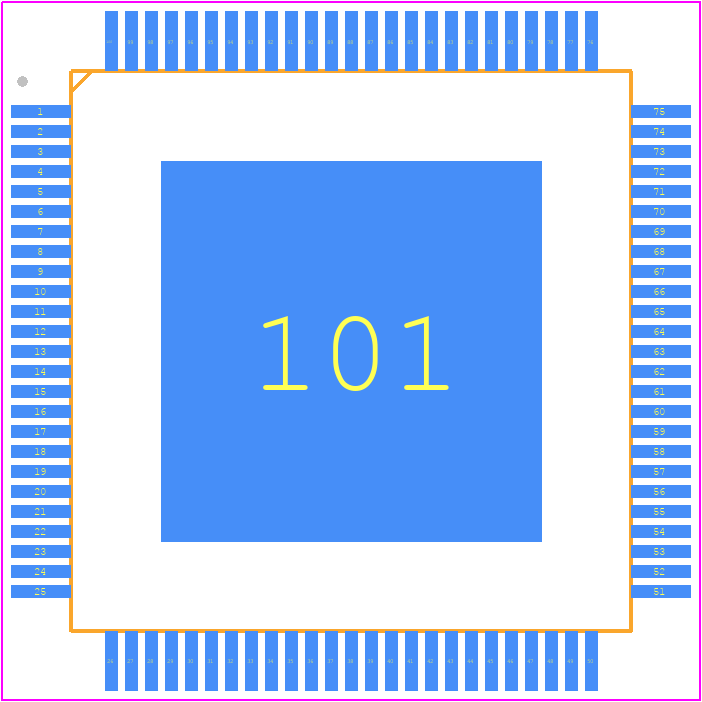

• What is the recommended PCB layout for the AD9276BSVZ?
  A good PCB layout for the AD9276BSVZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
• How do I optimize the performance of the AD9276BSVZ in a noisy environment?
  To optimize the performance of the AD9276BSVZ in a noisy environment, use shielding, filtering, and grounding techniques to minimize electromagnetic interference (EMI). Also, consider using a low-pass filter at the input to reduce high-frequency noise.
• What is the maximum clock frequency that the AD9276BSVZ can support?
  The AD9276BSVZ can support clock frequencies up to 160 MHz, but the maximum clock frequency may vary depending on the specific application and the quality of the clock signal.
• How do I program the AD9276BSVZ for different gain settings?
  The AD9276BSVZ has a programmable gain amplifier (PGA) that can be programmed using the SPI interface. The gain settings can be programmed using the PGA gain control register, which allows for gain settings from 0 dB to 42 dB in 3 dB increments.
• What is the power consumption of the AD9276BSVZ?
  The power consumption of the AD9276BSVZ depends on the specific application and the operating conditions. However, the typical power consumption is around 350 mW at a supply voltage of 3.3 V and a clock frequency of 100 MHz.
