Part Image

AD9500BP - Analog Devices

Description: Clock Generator IC 1 28-LCC (J-Lead)

Download AD9500BP Model

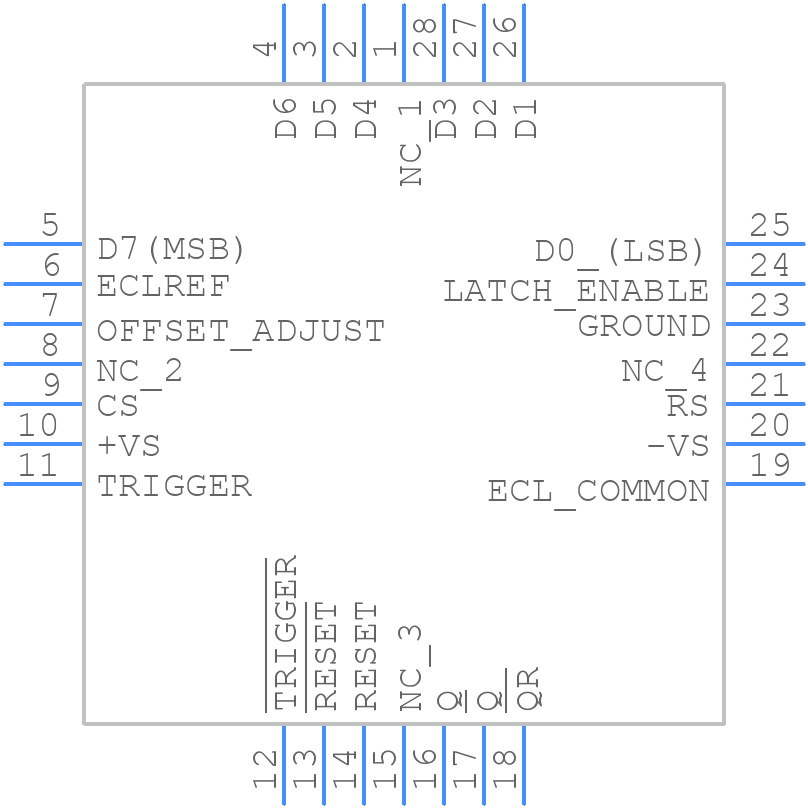

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

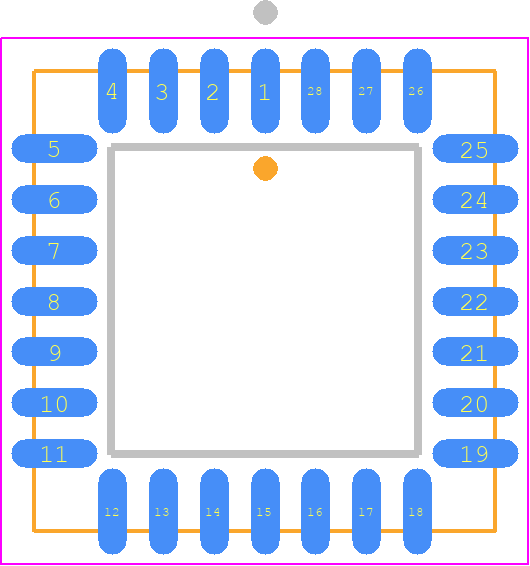

AD9500BP - Analog Devices PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - 28-Leadless PLCC (P-28A)
click to zoom

AD9500BP Details

  • Manufacturer Part Number:

    AD9500BP

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QLCC

  • Package Description:

    PLASTIC, LCC-28

  • Pin Count:

    28

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PQCC-J28

  • JESD-609 Code:

    e0

  • Length:

    11.505 mm

  • Neg Supply Voltage-Nom (Vsup):

    -5.2 V

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCJ

  • Package Equivalence Code:

    LDCC28,.5SQ

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.57 mm

  • Supply Current-Max (Isup):

    74 mA

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Width:

    11.505 mm

AD9500BP Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by AVCC, and then the analog input signals. This ensures proper device operation and prevents latch-up.
  • To minimize noise and interference, keep analog and digital traces separate, use a solid ground plane, and place decoupling capacitors close to the device. Also, avoid running digital traces near analog input pins.
  • The maximum clock frequency for the AD9500BP is 20 MHz. Exceeding this frequency may result in reduced performance or device malfunction.
  • The AD9500BP outputs data in a 2's complement format. To convert this to a signed integer format, simply invert the MSB and add 1 to the result.
  • To synchronize multiple AD9500BP devices, use a common clock source and ensure that the clock signals are properly buffered and distributed to each device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD9500BP Overview

Use the download button to access the AD9500BP schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like AD950, or try a keyword search, such as Other Analog ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.

Parts related to AD9500BP

Showing 0 results

AD9500BP Alternates

Showing results

Image Part Number Model
Part Image AD9500BP-REEL Analog Devices Inc

Analog Circuit, 1 Func, BIPolar, PQCC28
