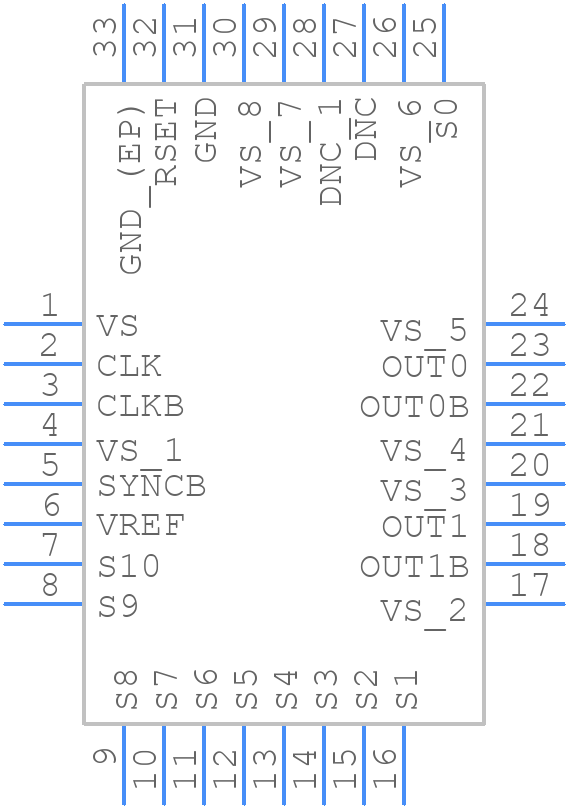

AD9515BCPZ - Analog Devices

AD9515BCPZ Details

• Manufacturer Part Number:

  AD9515BCPZ

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  LCC-32

• Pin Count:

  32

• Manufacturer Package Code:

  CP-32-7

• Country Of Origin:

  Singapore

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Family:

  9515

• Input Conditioning:

  DIFFERENTIAL

• JESD-30 Code:

  S-XQCC-N32

• JESD-609 Code:

  e3

• Length:

  5 mm

• Logic IC Type:

  LOW SKEW CLOCK DRIVER

• Max I(ol):

  0.001 A

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  32

• Number of True Outputs:

  4

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC32,.2SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Prop. Delay@Nom-Sup:

  1.8 ns

• Propagation Delay (tpd):

  1.8 ns

• Qualification Status:

  Not Qualified

• Same Edge Skew-Max (tskwd):

  0.3 ns

• Seated Height-Max:

  1 mm

• Supply Voltage-Max (Vsup):

  3.465 V

• Supply Voltage-Min (Vsup):

  3.135 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  YES

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  5 mm

• fmax-Min:

  1600 MHz
