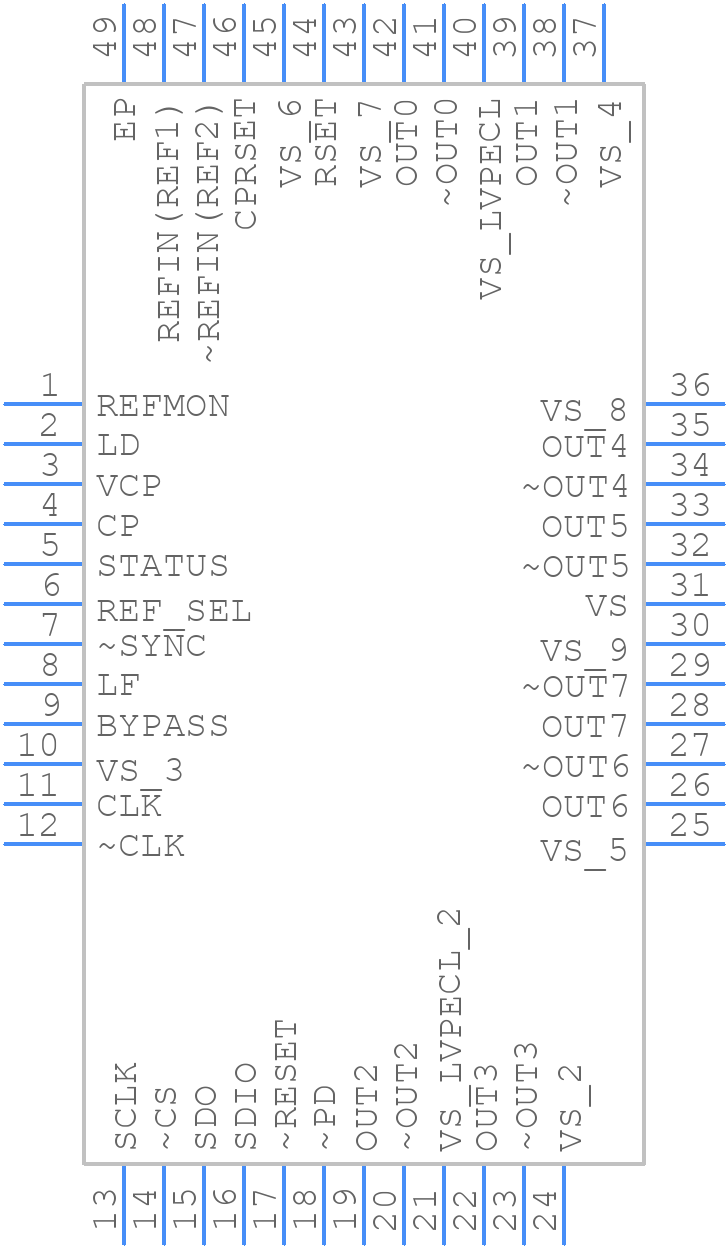

AD9517-0ABCPZ-RL7 - Analog Devices

AD9517-0ABCPZ-RL7 Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for the AD9517-0ABCPZ-RL7?
  Analog Devices provides a recommended PCB layout guide in the AD9517 evaluation board documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance.
• How do I optimize the clock distribution network for the AD9517-0ABCPZ-RL7?
  To optimize the clock distribution network, use a low-impedance clock source, minimize clock signal routing distances, and use a clock buffer or repeater if necessary. Additionally, ensure that the clock signal is properly terminated and that the clock distribution network is well-decoupled from the power supply.
• What is the maximum clock frequency that the AD9517-0ABCPZ-RL7 can handle?
  The AD9517-0ABCPZ-RL7 can handle clock frequencies up to 3.2 GHz, but the maximum frequency may be limited by the specific application and PCB layout. It's recommended to consult the datasheet and application notes for more information.
• How do I configure the AD9517-0ABCPZ-RL7 for a specific clock output frequency?
  The AD9517-0ABCPZ-RL7 can be configured using a serial interface (SPI) to set the clock output frequency. The device has a range of pre-defined frequency settings, and the user can also program a custom frequency using the SPI interface. Consult the datasheet and application notes for more information on the configuration process.
• What is the power consumption of the AD9517-0ABCPZ-RL7?
  The power consumption of the AD9517-0ABCPZ-RL7 depends on the specific application and operating conditions. The typical power consumption is around 350 mW, but this can vary depending on the clock frequency, output load, and other factors. Consult the datasheet for more information on power consumption.
