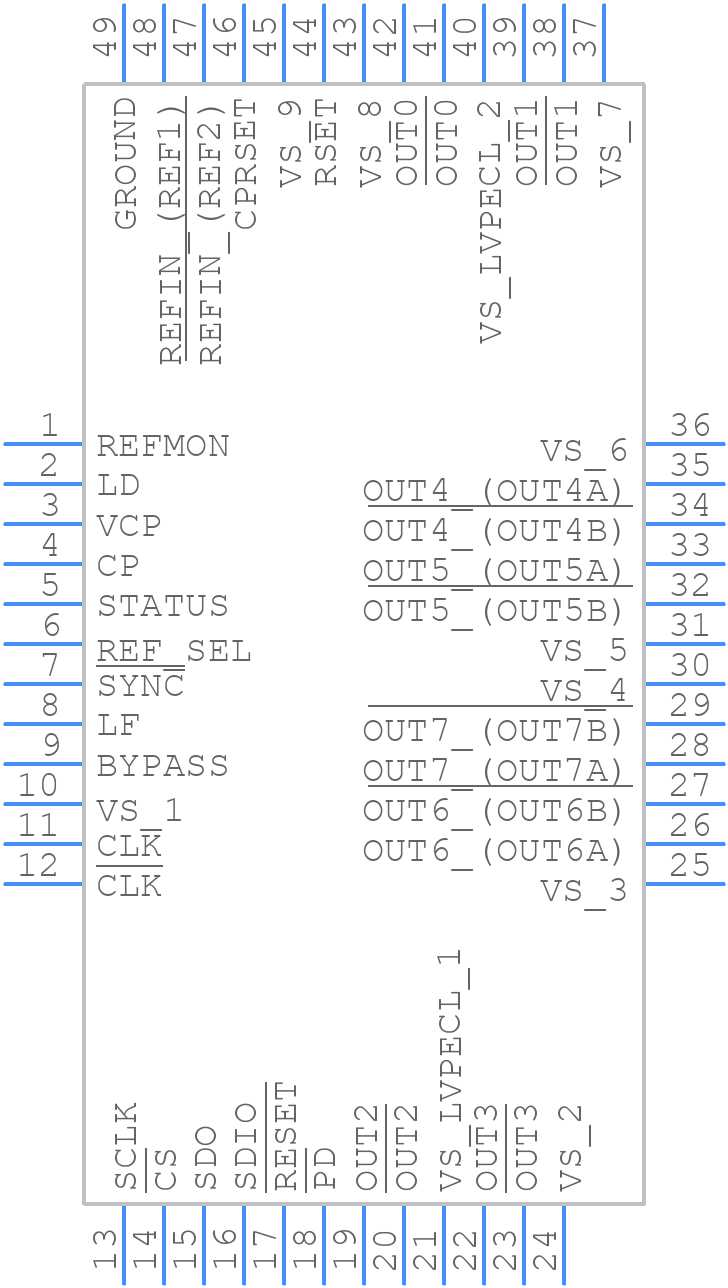

AD9517-1ABCPZ - Analog Devices

AD9517-1ABCPZ Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for the AD9517-1ABCPZ to minimize noise and ensure optimal performance?
  A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a star-configuration for the power supply. Also, use a common mode filter and a ferrite bead to filter the power supply.
• How do I optimize the clock distribution network for the AD9517-1ABCPZ?
  Use a clock tree architecture with a central clock source and distribute the clock signal to each component using a low-skew, low-jitter clock distribution network. Use a clock buffer or repeater to regenerate the clock signal and reduce jitter.
• What is the recommended power-up sequence for the AD9517-1ABCPZ?
  Power up the device in the following sequence: VCC, AVCC, DVCC, and then the clock signal. Ensure that the power supplies are stable and within the recommended operating range before applying the clock signal.
• How do I troubleshoot issues with the AD9517-1ABCPZ, such as jitter or phase noise?
  Use a high-speed oscilloscope or a spectrum analyzer to measure the clock signal and identify the source of the issue. Check the power supply, clock distribution network, and PCB layout for any noise or signal integrity issues.
• Can I use the AD9517-1ABCPZ in a system with multiple clock domains?
  Yes, the AD9517-1ABCPZ can be used in a system with multiple clock domains. However, ensure that each clock domain is properly isolated and that the clock signals are synchronized using a clock domain crossing (CDC) circuit.
