AD9517-4ABCPZ - Analog Devices

Description: Clock Generator, Fanout Distribution IC 1.8GHz 1 48-VFQFN Exposed Pad, CSP

Download AD9517-4ABCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

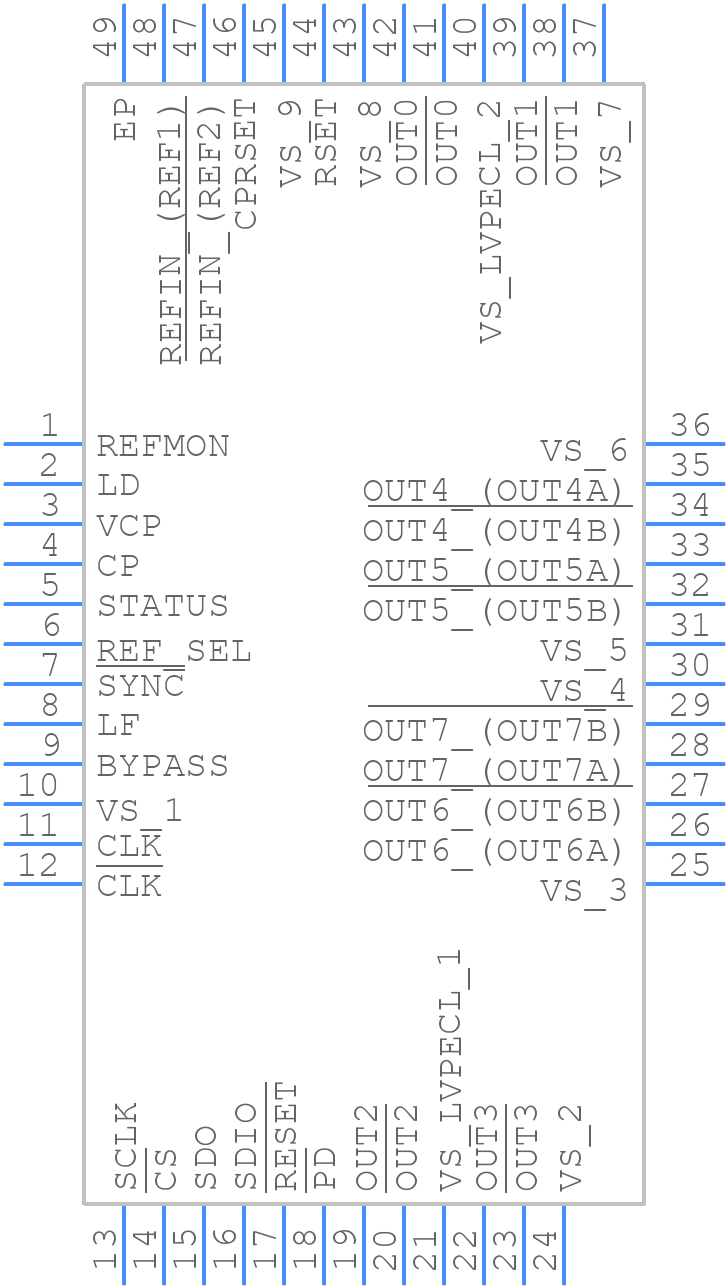

AD9517-4ABCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9517-4ABCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - . 48-Lead Lead Frame Chip Scale Package [LFCSP_VQ] 7 mm × 7 mm Body, Very Thin Quad (CP-48-8)
click to zoom
3D Models
AD9517-4ABCPZ - Analog Devices - 3D model - Quad Flat No-Lead - . 48-Lead Lead Frame Chip Scale Package [LFCSP_VQ] 7 mm × 7 mm Body, Very Thin Quad (CP-48-8)
click to zoom

AD9517-4ABCPZ Details

  • Manufacturer Part Number:

    AD9517-4ABCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    7 X 7 MM, ROHS COMPLIANT, MO-220VKKD-2, LFCSP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    CP-48-8

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    30

AD9517-4ABCPZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by AVCC, and then DVCC. This ensures that the internal voltage regulators are powered up correctly.
  • The loop filter design should be optimized based on the specific application requirements. A good starting point is to use the recommended values in the datasheet, and then adjust the values based on the desired phase noise and spurious performance.
  • The AD9517-4ABCPZ can operate up to 2.4 GHz, but the maximum frequency range depends on the specific configuration and application. Refer to the datasheet for more information.
  • Start by checking the power supply voltages, clock input signals, and output signals. Use an oscilloscope to verify the signal integrity and frequency. Also, check the device's temperature and ensure it is within the recommended operating range.
  • Yes, the AD9517-4ABCPZ can be used in non-50 ohm systems, but the output impedance and signal integrity may be affected. Additional circuitry may be required to match the impedance and ensure signal integrity.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD9517-4ABCPZ Overview

Use the download button to access the AD9517-4ABCPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD951, or try a keyword search, such as Clock Generators
