AD9518-0ABCPZ - Analog Devices

Description: Analog Devices AD9518-0ABCPZ, Dual PLL Clock Driver, 2.55 → 2.95 GHz, 48-Pin LFCSP

Download AD9518-0ABCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

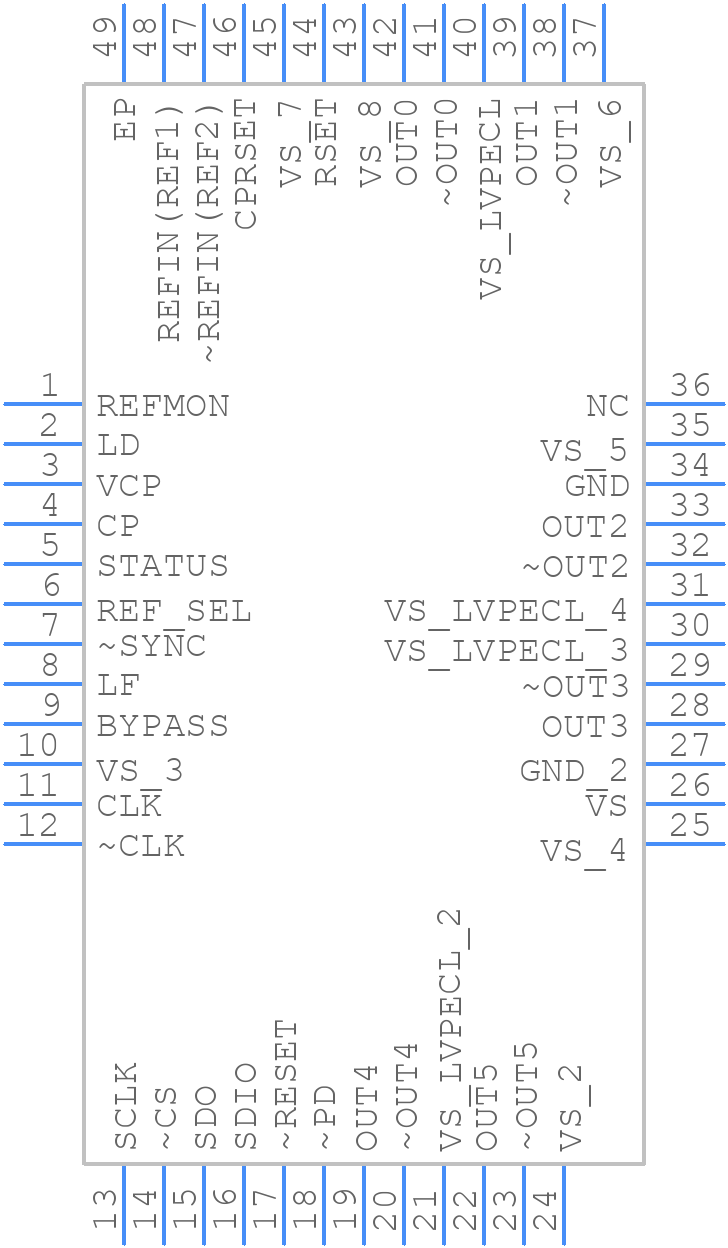

Symbol
AD9518-0ABCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9518-0ABCPZ - Analog Devices PCB footprint - Other - Other - QFN50P700X700X100-49N
click to zoom
3D Models
AD9518-0ABCPZ - Analog Devices - 3D model - Other - QFN50P700X700X100-49N
click to zoom

AD9518-0ABCPZ Details

  • Manufacturer Part Number:

    AD9518-0ABCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LCC-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    CP-48-8

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Family:

    9518

  • Input Conditioning:

    DIFFERENTIAL MUX

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of True Outputs:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    1.18 ns

  • Propagation Delay (tpd):

    1.18 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.22 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

  • fmax-Min:

    2950 MHz

AD9518-0ABCPZ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the AD9518-0ABCPZ can be found in the AD9518 Evaluation Board documentation, which provides a detailed layout guide and Gerber files for reference. Additionally, Analog Devices provides a PCB layout checklist in the AD9518 datasheet, which highlights key considerations for signal integrity, power supply decoupling, and thermal management.
  • To optimize the AD9518-0ABCPZ for low jitter performance, ensure that the device is properly bypassed with high-quality capacitors, and that the power supply is well-regulated and low-noise. Additionally, use a high-quality clock source, and optimize the loop filter components for the specific application. Analog Devices provides a jitter optimization guide in the AD9518 datasheet, which provides more detailed recommendations.
  • The AD9518-0ABCPZ can support clock frequencies up to 3.2 GHz, but the maximum frequency may be limited by the specific application and the quality of the clock source. It's recommended to consult the AD9518 datasheet and application notes for more information on clock frequency limitations and optimization.
  • The AD9518-0ABCPZ can be configured for a specific output frequency using the SPI interface. The device has a range of output frequencies that can be selected using the PLL and VCO settings. Analog Devices provides a detailed programming guide in the AD9518 datasheet, which includes examples and equations for calculating the required settings.
  • The power consumption of the AD9518-0ABCPZ depends on the specific application and operating conditions. The device has a typical power consumption of 1.2 W, but this can vary depending on the output frequency, load, and other factors. Consult the AD9518 datasheet for more information on power consumption and thermal management.
