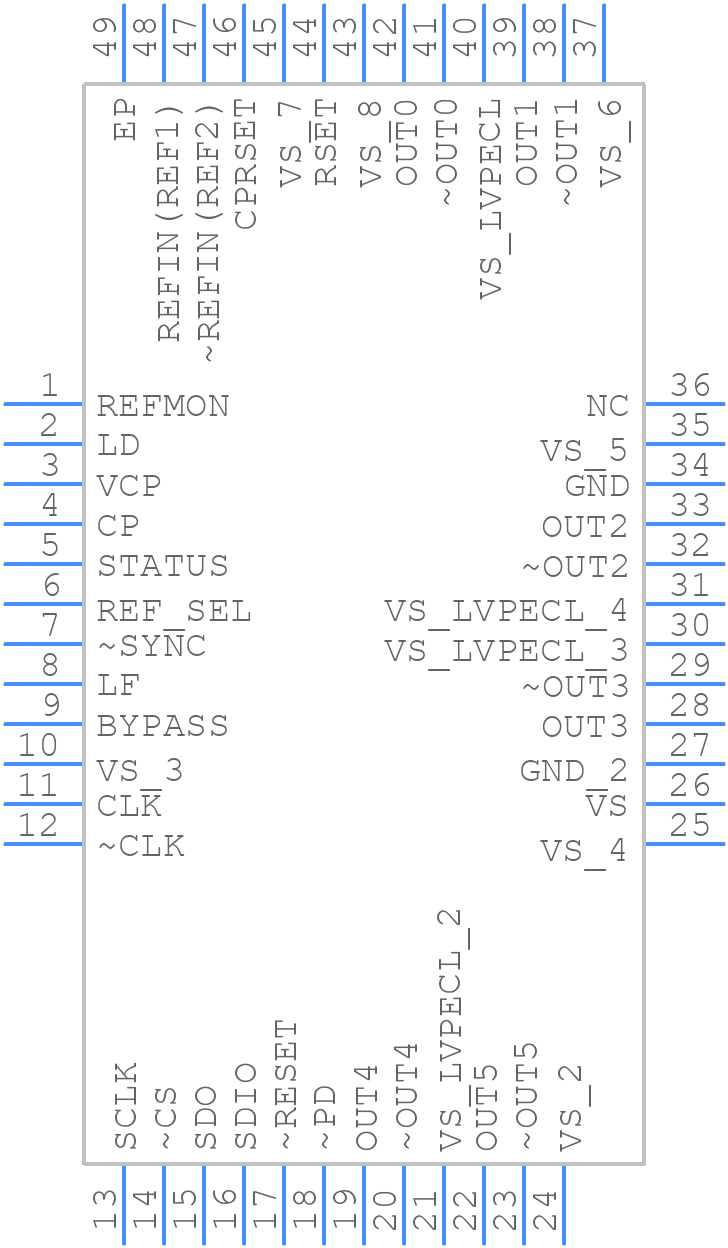

AD9518-3ABCPZ-RL7 - Analog Devices

AD9518-3ABCPZ-RL7 Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for the AD9518-3ABCPZ-RL7 to minimize noise and ensure optimal performance?
  A good PCB layout for the AD9518-3ABCPZ-RL7 involves separating the analog and digital sections, using a solid ground plane, and minimizing trace lengths and loops. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
• How do I properly configure the AD9518-3ABCPZ-RL7 for a specific clock frequency and output format?
  To configure the AD9518-3ABCPZ-RL7, you need to set the correct register values for the desired clock frequency and output format. You can use the AD9518 evaluation board software or the ADI Clock Design Tool to generate the required register settings.
• What are the thermal considerations for the AD9518-3ABCPZ-RL7, and how can I ensure reliable operation over temperature?
  The AD9518-3ABCPZ-RL7 has a maximum junction temperature of 150°C. To ensure reliable operation, you should provide adequate heat sinking, use a thermally conductive PCB material, and avoid overheating the device. You can also use thermal simulation tools to estimate the device's temperature rise.
• How do I troubleshoot common issues with the AD9518-3ABCPZ-RL7, such as clock jitter or output signal degradation?
  To troubleshoot issues with the AD9518-3ABCPZ-RL7, you can use a combination of oscilloscopes, spectrum analyzers, and logic analyzers to measure the clock signal quality and output signal integrity. You can also use the ADI Clock Design Tool to simulate the clock signal and identify potential issues.
• What are the EMI and RFI considerations for the AD9518-3ABCPZ-RL7, and how can I ensure compliance with regulatory standards?
  To minimize EMI and RFI, you should use proper PCB layout techniques, such as shielding, grounding, and decoupling. You should also use EMI filters and shielding on the output clock signals. Additionally, you can use simulation tools to estimate the device's EMI performance and ensure compliance with regulatory standards such as FCC and CE.
