AD9523BCPZ-REEL7 - Analog Devices

Description: Low Jitter Clock Generator

Download AD9523BCPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD9523BCPZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

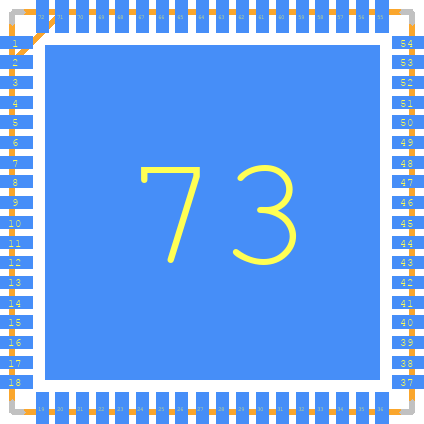

AD9523BCPZ-REEL7 - Analog Devices PCB footprint - Other - Other - QFN50P1000X1000X100-73N
click to zoom
3D Models
AD9523BCPZ-REEL7 - Analog Devices - 3D model - Other - QFN50P1000X1000X100-73N
click to zoom

AD9523BCPZ-REEL7 Details

  • Manufacturer Part Number:

    AD9523BCPZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-72

  • Pin Count:

    72

  • Manufacturer Package Code:

    CP-72-6

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • JESD-30 Code:

    S-XQCC-N72

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    72

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    1000 MHz

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC72,.39SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    400 MHz

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    75.8 mA

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PROCESSOR SPECIFIC

AD9523BCPZ-REEL7 Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout in the AD9523 evaluation board documentation, which includes guidelines for component placement, routing, and grounding to ensure optimal performance and minimize noise.
  • The AD9523BCPZ-REEL7 can be configured using the SPI interface. Analog Devices provides a software tool, AD9523 Eval Software, which allows users to configure the device and generate the necessary SPI commands for a specific clock frequency.
  • The AD9523BCPZ-REEL7 can generate clock frequencies up to 3.2 GHz, but the maximum frequency depends on the specific output configuration and the quality of the external clock source.
  • To ensure low jitter performance, it is essential to follow proper PCB design and layout guidelines, use a high-quality external clock source, and optimize the device configuration using the AD9523 Eval Software. Additionally, Analog Devices provides a jitter calculator tool to help optimize the device configuration for specific applications.
  • Yes, the AD9523BCPZ-REEL7 can be used in a redundant clocking system. The device has a built-in clock switchover feature that allows it to automatically switch between two clock sources in case of a failure. This feature can be configured using the SPI interface.
