- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AD9524BCPZ
- Part Number AD9524BCPZ
- Manufacturer Analog Devices
- Pin Count 49
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - CP-48-1 (LFCSP)
- Released Date Jan 11, 2017
- Last Modified Date Nov 14, 2025 4:26 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD9524BCPZ Details
-
Manufacturer Part Number:
AD9524BCPZ
-
Source Url Status Check Date:
2013-05-01 14:56:31.078
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
Package Description:
LFCSP-48
-
Pin Count:
48
-
Manufacturer Package Code:
CP-48-1
-
Country Of Origin:
Singapore
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
AD9524BCPZ Frequently Asked Questions (FAQs)
-
The recommended power-up sequence is to apply VCC first, followed by VCC_IO, and then the clock input. This ensures that the internal voltage regulators are powered up correctly.
-
To optimize performance, ensure that the input clock signal is clean and has low jitter. Also, use a low-noise power supply, and decouple the power pins properly. Additionally, use a high-quality crystal oscillator and ensure that the PCB layout is optimized for low noise and minimal signal coupling.
-
The maximum frequency of the output clock that can be generated by the AD9524BCPZ is 3.2 GHz. However, the actual maximum frequency may be limited by the specific application and the quality of the input clock signal.
-
The AD9524BCPZ can be configured for a specific output frequency using the SPI interface. The device has a set of registers that control the output frequency, and the user can write to these registers to set the desired frequency. The specific configuration will depend on the application and the required output frequency.
-
The VCO calibration process is used to optimize the performance of the voltage-controlled oscillator (VCO) in the AD9524BCPZ. The calibration process adjusts the VCO bias voltage to ensure that the VCO operates at the optimal frequency and with minimal phase noise.
Trust Checks
Community Provided
System Verified
Community Approved
AD9524BCPZ Overview

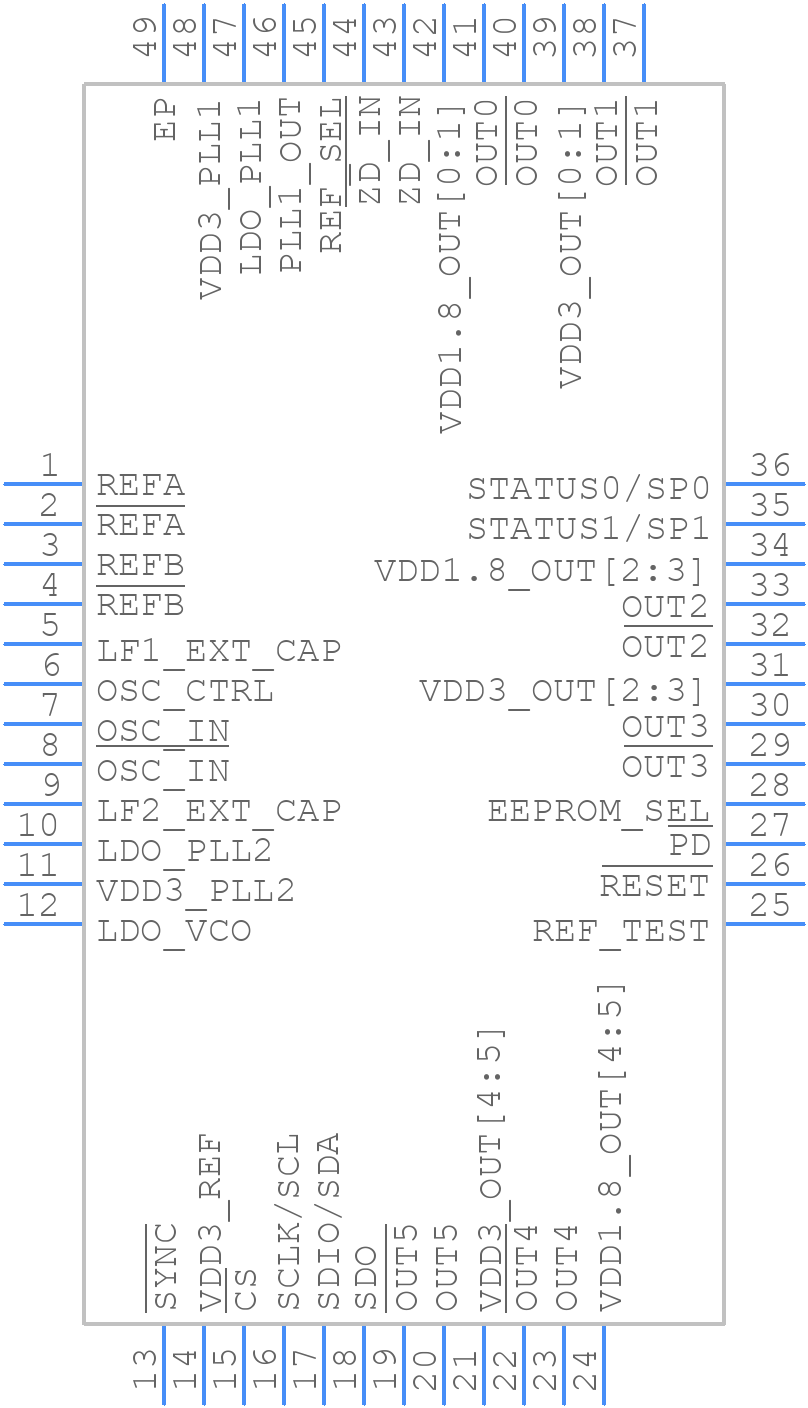

Use the download button to access the AD9524BCPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD952,
or try a keyword search, such as Clock Generators
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
