AD9531BCPZ - Analog Devices

Description: Clock Generators & Support Products Three PLL Baseband clock distributor

Download AD9531BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD9531BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

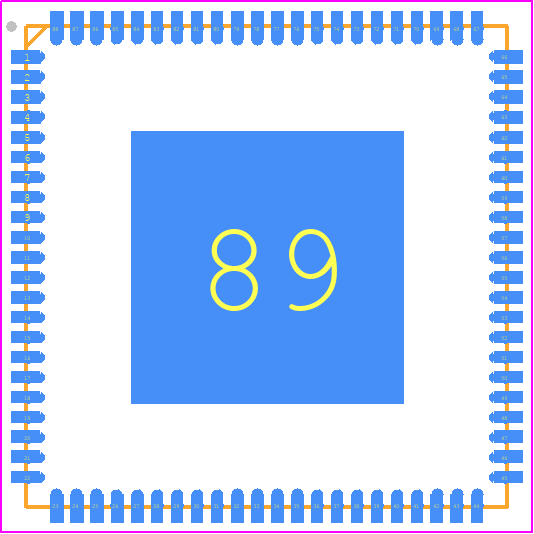

AD9531BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-88-5)
click to zoom
3D Models
AD9531BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - (CP-88-5)
click to zoom

AD9531BCPZ Details

  • Manufacturer Part Number:

    AD9531BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LFCSP-88

  • Pin Count:

    88

  • Manufacturer Package Code:

    CP-88-5

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Additional Feature:

    IT ALSO OPERATES AT 3.3V NOM SUPPLY

  • JESD-30 Code:

    S-XQCC-N88

  • Length:

    12 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    88

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    400 MHz

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC88,.47SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    400 MHz

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max:

    1.89 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    12 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PROCESSOR SPECIFIC

AD9531BCPZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD9531BCPZ involves keeping the analog and digital sections separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane. The datasheet provides a recommended PCB layout, but it's also recommended to consult with an experienced PCB designer for optimal results.
  • To properly configure the AD9531BCPZ, you'll need to consult the datasheet and the device's programming guide. You'll need to determine the correct register settings, clock frequencies, and output formats for your specific application. It's also recommended to use Analog Devices' evaluation boards and software development tools to simplify the configuration process.
  • The AD9531BCPZ has a maximum junction temperature of 150°C, and it's recommended to keep the device within a safe operating temperature range to ensure reliability. This can be achieved by using a heat sink, ensuring good airflow, and minimizing power consumption. It's also important to follow proper thermal design and layout guidelines to prevent thermal gradients and hotspots.
  • To troubleshoot issues with the AD9531BCPZ, start by consulting the datasheet and the device's programming guide to ensure that the device is properly configured. Use a logic analyzer or oscilloscope to verify the input and output signals, and check for any errors or anomalies. It's also recommended to use Analog Devices' evaluation boards and software development tools to simplify the troubleshooting process.
  • The AD9531BCPZ is a commercial-grade device and is not specifically designed for radiation-tolerant or high-reliability applications. However, it does meet certain EMC standards, such as EN55022 and EN55024. It's recommended to consult with Analog Devices' application engineers and follow proper design and layout guidelines to ensure EMC compliance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD9531BCPZ Overview

Use the download button to access the AD9531BCPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD953, or try a keyword search, such as Clock Generators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
