AD9548BCPZ - Analog Devices

AD9548BCPZ Details

• Manufacturer Part Number:

  AD9548BCPZ

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  QFN

• Package Description:

  12 X 12 MM, ROHS COMPLIANT, MO-220VRRD, LFCSP-88

• Pin Count:

  88

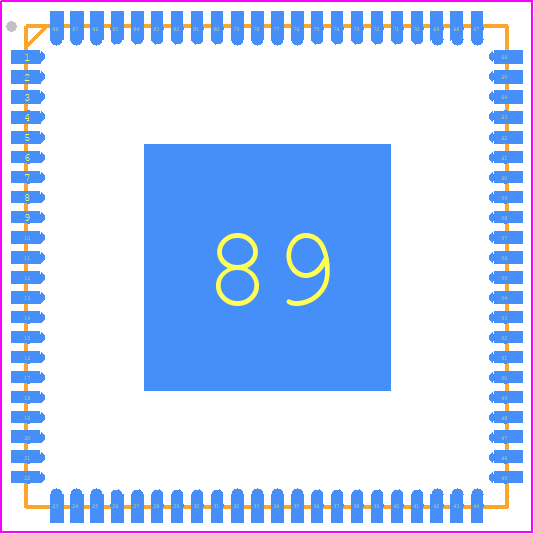

• Manufacturer Package Code:

  CP-88-2

• Country Of Origin:

  Singapore

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  8.5

• JESD-30 Code:

  S-XQCC-N88

• JESD-609 Code:

  e3

• Length:

  12 mm

• Moisture Sensitivity Level:

  3

• Number of Terminals:

  88

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Clock Frequency-Max:

  450 MHz

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Primary Clock/Crystal Frequency-Nom:

  1000 MHz

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  0.9 mm

• Supply Voltage-Max:

  1.89 V

• Supply Voltage-Min:

  1.71 V

• Supply Voltage-Nom:

  1.8 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  12 mm

• uPs/uCs/Peripheral ICs Type:

  CLOCK GENERATOR, OTHER
