AD9554BCPZ-REEL7 - Analog Devices

Description: Quad PLL, Quad Input, 8-output Multiservice Line Card Adaptive Clock Translator

Download AD9554BCPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD9554BCPZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

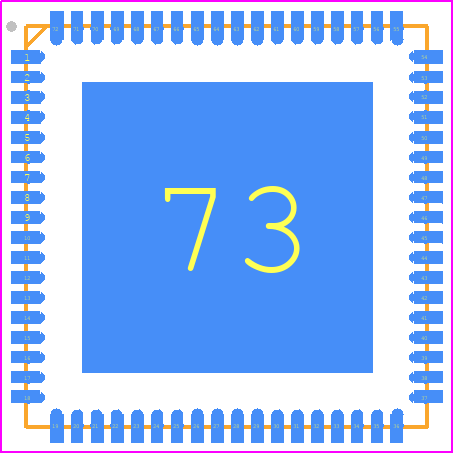

AD9554BCPZ-REEL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 72-Lead Lead Frame Chip Scale Package [LFCSP] 10 x 10 mm Body and 0.85 mm Package Height (CP-72-4)--1
click to zoom
3D Models
AD9554BCPZ-REEL7 - Analog Devices - 3D model - Quad Flat No-Lead - 72-Lead Lead Frame Chip Scale Package [LFCSP] 10 x 10 mm Body and 0.85 mm Package Height (CP-72-4)--1
click to zoom

AD9554BCPZ-REEL7 Details

  • Manufacturer Part Number:

    AD9554BCPZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    72

  • Manufacturer Package Code:

    CP-72-4

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-30 Code:

    S-XQCC-N72

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    72

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    1.5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ATM/SONET/SDH SUPPORT CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10 mm

AD9554BCPZ-REEL7 Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout in the AD9554 evaluation board documentation, which can be found on the product page. It's essential to follow this layout to ensure proper operation and minimize noise.
  • The AD9554BCPZ-REEL7 can be configured using the SPI interface. Analog Devices provides a software tool, ADI Clock Design Tool, which can be used to generate the required SPI commands for a specific clock frequency. The tool can be downloaded from the product page.
  • The AD9554BCPZ-REEL7 can generate clock frequencies up to 3.2 GHz. However, the maximum frequency may vary depending on the specific configuration and output divider settings.
  • Yes, the AD9554BCPZ-REEL7 has a built-in hitless switching feature that allows it to be used in redundant clocking systems. This feature enables the device to switch between two clock sources without interrupting the output clock signal.
  • The typical power consumption of the AD9554BCPZ-REEL7 is around 1.2 W. However, this value may vary depending on the specific configuration, output frequency, and output load.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD9554BCPZ-REEL7 Overview

Use the download button to access the AD9554BCPZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD955, or try a keyword search, such as ATM/SONET/SDH ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
