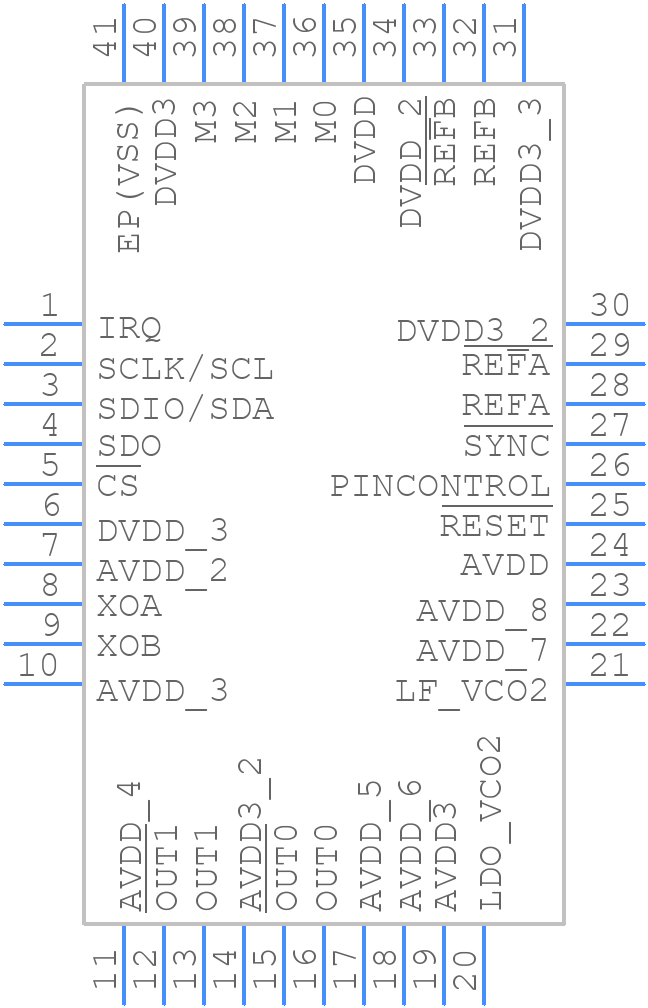

AD9557BCPZ - Analog Devices

AD9557BCPZ Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for the AD9557BCPZ to minimize noise and ensure optimal performance?
  A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a star-configuration for the power supply. Also, use a common mode filter and a ferrite bead to filter the power supply.
• How do I optimize the clock distribution network for the AD9557BCPZ?
  Use a clock tree architecture with a central clock source, and use transmission lines or controlled impedance lines to distribute the clock signal. Terminate the clock lines with a 50-ohm resistor, and use a clock buffer or repeater if necessary.
• What is the recommended power-up sequence for the AD9557BCPZ?
  Power up the device in the following sequence: AVDD, DVDD, and then the clock signal. Ensure that the power supplies are stable before applying the clock signal.
• How do I troubleshoot issues with the AD9557BCPZ, such as jitter or phase noise?
  Use a high-speed oscilloscope to measure the clock signal and check for jitter and phase noise. Verify that the power supplies are stable and within the recommended range. Check the PCB layout for noise coupling and ensure that the clock distribution network is optimized.
• Can I use the AD9557BCPZ in a system with multiple clock domains?
  Yes, the AD9557BCPZ can be used in a system with multiple clock domains. However, ensure that the clock domains are properly isolated and that the device is configured to handle the multiple clock domains. Use a clock domain crossing (CDC) circuit if necessary.
