AD9559BCPZ-REEL7 - Analog Devices

Description: Clock Generators & Support Products Multi-protocol line card dual clock

Download AD9559BCPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD9559BCPZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

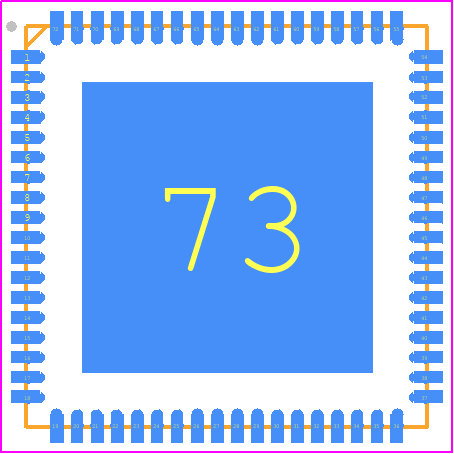

AD9559BCPZ-REEL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 10 mm × 10 mm Body, Very Thin Quad (CP-72-4)
click to zoom
3D Models
AD9559BCPZ-REEL7 - Analog Devices - 3D model - Quad Flat No-Lead - 10 mm × 10 mm Body, Very Thin Quad (CP-72-4)
click to zoom

AD9559BCPZ-REEL7 Details

  • Manufacturer Part Number:

    AD9559BCPZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    10 X 10 MM, ROHS COMPLIANT, MO-220VNND-4, LFCSP-72

  • Pin Count:

    72

  • Manufacturer Package Code:

    CP-72-4

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-30 Code:

    S-XQCC-N72

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    72

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ATM/SONET/SDH TRANSMITTER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10 mm

AD9559BCPZ-REEL7 Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout guide for the AD9559BCPZ-REEL7 in the AD9559 Evaluation Board documentation, which can be found on the Analog Devices website. The guide includes layout recommendations for the device, power supply, and clock input circuits.
  • Analog Devices offers an AD9559 Evaluation Board and software tools that can be used to optimize the performance of the AD9559BCPZ-REEL7 in a specific application. The evaluation board allows users to adjust various parameters, such as the clock frequency and PLL settings, to optimize performance. Additionally, Analog Devices' technical support team can provide guidance on optimizing performance for specific applications.
  • The maximum clock frequency that can be used with the AD9559BCPZ-REEL7 is 3.2 GHz. However, the maximum clock frequency may be limited by the specific application and the quality of the clock signal. It is recommended to consult the datasheet and application notes for more information on clock frequency limitations.
  • To ensure proper power supply and decoupling, it is recommended to follow the power supply recommendations in the AD9559 datasheet and to use a high-quality power supply with low noise and ripple. Additionally, it is recommended to use decoupling capacitors with a value of 0.1 μF or 1 μF, placed as close as possible to the device's power pins.
  • The typical power consumption of the AD9559BCPZ-REEL7 is 1.2 W, with a maximum power consumption of 1.5 W. However, the actual power consumption may vary depending on the specific application and operating conditions.
