AD9559BCPZ - Analog Devices

Description: Quad Adaptive Clock Translator LFCSP72EP

Download AD9559BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD9559BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

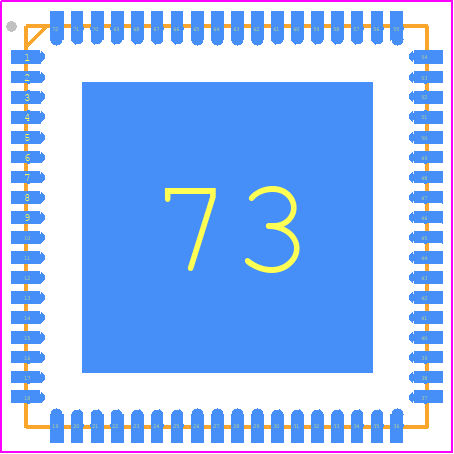

AD9559BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 72-Lead Lead Frame Chip Scale Package [LFCSP] 10 x 10 mm Body and 0.85 mm Package Height (CP-72-4)--1
click to zoom
3D Models
AD9559BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - 72-Lead Lead Frame Chip Scale Package [LFCSP] 10 x 10 mm Body and 0.85 mm Package Height (CP-72-4)--1
click to zoom
  • Datasheet Download Datasheet
  • Stock & Prices $ Price & Stock for AD9559BCPZ
  • Part Number AD9559BCPZ
  • Manufacturer Analog Devices
  • Pin Count 73
  • Part Category Integrated Circuit
  • Package Category Quad Flat No-Lead
  • Footprint Name Quad Flat No-Lead - 72-Lead Lead Frame Chip Scale Package [LFCSP] 10 x 10 mm Body and 0.85 mm Package Height (CP-72-4)--1
  • Released Date Jan 19, 2026
  • Last Modified Date Jan 19, 2026 11:55 AM UTC
  • Pinout / Pin List Click Here (Member Only)

AD9559BCPZ Details

  • Manufacturer Part Number:

    AD9559BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    10 X 10 MM, ROHS COMPLIANT, MO-220VNND-4, LFCSP-72

  • Pin Count:

    72

  • Manufacturer Package Code:

    CP-72-4

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-30 Code:

    S-XQCC-N72

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    72

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ATM/SONET/SDH TRANSMITTER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10 mm

AD9559BCPZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by AVCC, and then DVCC. This ensures that the internal voltage regulators are powered up correctly.
  • To optimize performance, ensure that the device is operated within the recommended operating conditions, use a high-quality clock source, and optimize the loop filter components. Additionally, consider using a low-jitter reference clock and minimizing the number of clock domain crossings.
  • The maximum frequency of the output clock that can be generated by the AD9559BCPZ is 1.5 GHz.
  • Configure the device using the SPI interface to set the desired clock frequency, format, and other parameters. Refer to the datasheet and programming guide for specific register settings and values.
  • The VCO calibration process is used to optimize the voltage-controlled oscillator (VCO) frequency and ensure that it is centered within the desired frequency range. This process is typically performed during device initialization.
