AD9571ACPZLVD - Analog Devices

Description: Ethernet Clock Generator, 10 Clock Outputs

Download AD9571ACPZLVD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

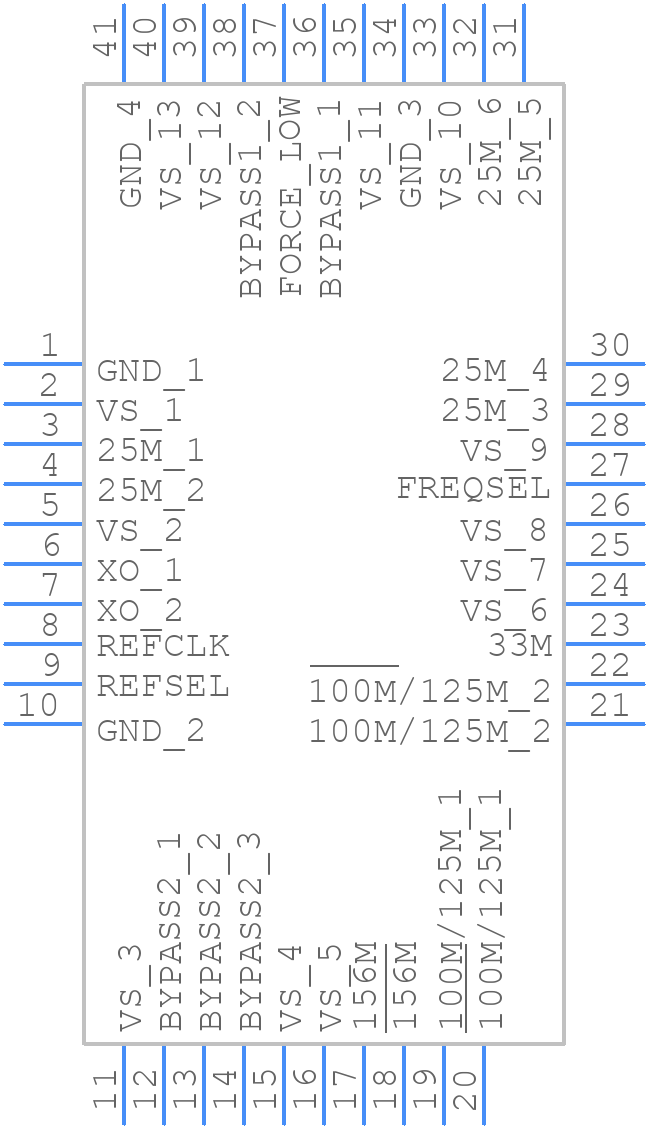

Symbol
AD9571ACPZLVD - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9571ACPZLVD - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 40-Lead Lead Frame Chip Scale Package [LFCSP_WQ] 6 mm × 6 mm Body, Very Very Thin Quad (CP-40-7)
click to zoom
3D Models
AD9571ACPZLVD - Analog Devices - 3D model - Quad Flat No-Lead - 40-Lead Lead Frame Chip Scale Package [LFCSP_WQ] 6 mm × 6 mm Body, Very Very Thin Quad (CP-40-7)
click to zoom

AD9571ACPZLVD Details

  • Manufacturer Part Number:

    AD9571ACPZLVD

  • Source Url Status Check Date:

    2013-05-01 14:56:31.154

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP_WQ-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-7

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Family:

    CMOS

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Inverted Outputs:

    10

  • Number of Terminals:

    40

  • Number of True Outputs:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.2 ns

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

  • fmax-Min:

    25 MHz

AD9571ACPZLVD Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a low-ESR capacitor for power decoupling and place it close to the device.
  • Follow the calibration procedure outlined in the datasheet, which involves applying a known clock signal and adjusting the internal PLL to achieve a stable lock. Ensure the device is operated within the recommended temperature range and power supply voltage.
  • The AD9571ACPZLVD can accurately measure clock frequencies up to 3.2 GHz. However, the device's performance may degrade at higher frequencies, and the user should consult the datasheet for specific frequency-dependent performance characteristics.
  • Yes, the AD9571ACPZLVD can be used in a multi-channel configuration. Each device can be connected to a separate clock input, and the devices can be synchronized using the SYNC_IN and SYNC_OUT pins. Consult the datasheet for specific configuration and synchronization guidelines.
  • The typical power consumption of the AD9571ACPZLVD is around 1.2 W. To optimize power consumption, ensure the device is operated at the recommended power supply voltage, use a low-dropout regulator, and consider using power-down modes when the device is not in use.
