AD9573ARUZ-RL7 - Analog Devices

Description: PCI-Express Clock Generator IC

Download AD9573ARUZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

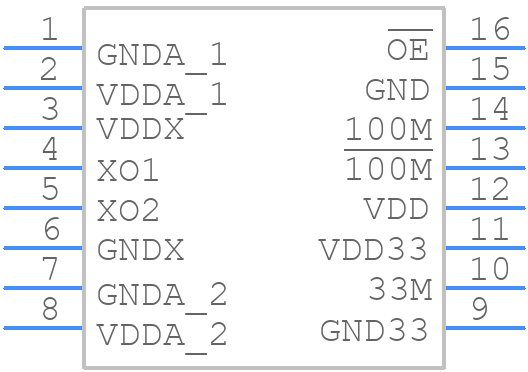

AD9573ARUZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9573ARUZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RU-16)
click to zoom
3D Models
AD9573ARUZ-RL7 - Analog Devices - 3D model - Small Outline Packages - (RU-16)
click to zoom

AD9573ARUZ-RL7 Details

  • Manufacturer Part Number:

    AD9573ARUZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    100 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    25 MHz

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, OTHER

AD9573ARUZ-RL7 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the AD9573ARUZ-RL7 can be found in the AD9573 Evaluation Board documentation, which provides a detailed layout guide and Gerber files for reference.
  • To optimize the performance of the AD9573ARUZ-RL7, it is recommended to follow the application notes and guidelines provided in the datasheet, as well as to consult with Analog Devices' technical support team for specific guidance tailored to your application.
  • The AD9573ARUZ-RL7 has an operating temperature range of -40°C to +125°C, as specified in the datasheet.
  • The AD9573ARUZ-RL7 is not specifically designed or qualified for radiation-hardened or high-reliability applications. For such applications, it is recommended to consult with Analog Devices' technical support team to discuss alternative solutions.
  • To troubleshoot issues with the AD9573ARUZ-RL7, it is recommended to consult the datasheet, application notes, and evaluation board documentation, as well as to use debugging tools such as oscilloscopes and logic analyzers to identify the root cause of the issue.
