AD9573ARUZ - Analog Devices

Description: PCI-Express Clock Generator IC

Download AD9573ARUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

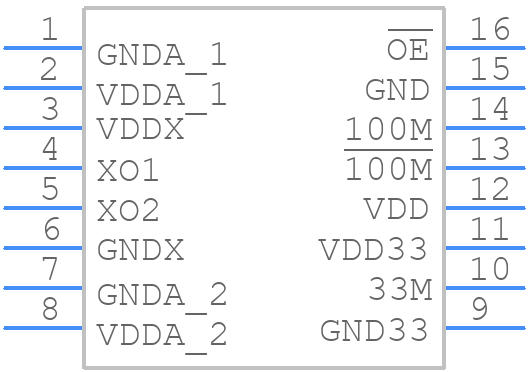

AD9573ARUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9573ARUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP(RU-16)
click to zoom
3D Models
AD9573ARUZ - Analog Devices - 3D model - Small Outline Packages - TSSOP(RU-16)
click to zoom

AD9573ARUZ Details

  • Manufacturer Part Number:

    AD9573ARUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    4.40 X 5 M, ROHS COMPLIANT, MO-153AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    100 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    25 MHz

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, OTHER

AD9573ARUZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD9573ARUZ involves keeping the analog and digital sections separate, using a solid ground plane, and minimizing trace lengths and loops. It's also important to follow the recommended pinout and component placement guidelines provided in the datasheet.
  • To properly configure the AD9573ARUZ, you'll need to consult the datasheet and evaluate your specific application requirements. This may involve selecting the correct clock frequency, configuring the PLL, and setting the desired output frequency and phase. You may also need to consult with Analog Devices' application notes and technical support resources.
  • The AD9573ARUZ is a high-frequency device that can generate heat, so thermal management is important. Ensure good airflow around the device, use a heat sink if necessary, and follow the recommended thermal design guidelines in the datasheet. You should also consider the device's thermal shutdown feature to prevent overheating.
  • To troubleshoot issues with the AD9573ARUZ, start by consulting the datasheet and application notes. Check the device's configuration and setup, and verify that the input clock and power supply are within the recommended specifications. Use oscilloscopes and spectrum analyzers to measure the output signals and identify any anomalies. You may also need to consult with Analog Devices' technical support resources or seek assistance from a qualified engineer.
  • The AD9573ARUZ is a high-frequency device that can be susceptible to EMI and RFI. To minimize these effects, use proper shielding and grounding techniques, keep the device away from other noise sources, and follow the recommended layout and design guidelines in the datasheet. You may also need to consider using EMI filters or shielding components in your design.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD9573ARUZ Overview

Use the download button to access the AD9573ARUZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD957, or try a keyword search, such as Clock Generators
