AD9575ARUZLVD - Analog Devices

Description: Network Clock Generator, Two Outputs

Download AD9575ARUZLVD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

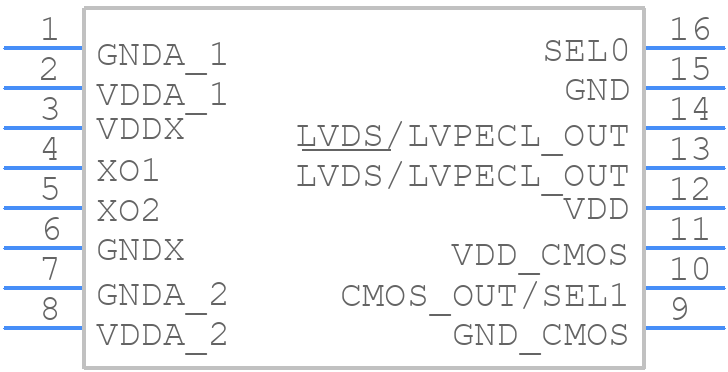

AD9575ARUZLVD - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9575ARUZLVD - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)
click to zoom
3D Models
AD9575ARUZLVD - Analog Devices - 3D model - Small Outline Packages - RU-16 (TSSOP)
click to zoom

AD9575ARUZLVD Details

  • Manufacturer Part Number:

    AD9575ARUZLVD

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    4.40 X 5 MM, ROHS COMPLIANT, MO-153AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    312.5 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    25.78 MHz

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    130 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, OTHER

AD9575ARUZLVD Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the AD9575ARUZLVD can be found in the AD9575 Evaluation Board documentation, which provides a detailed layout guide and Gerber files for reference. Additionally, Analog Devices provides a PCB layout checklist in the datasheet that highlights key considerations for signal integrity and thermal management.
  • To optimize the performance of the AD9575ARUZLVD, it's essential to follow the recommended operating conditions, such as power supply voltage, clock frequency, and output load. Additionally, Analog Devices provides an AD9575 Evaluation Board and software tools that allow you to evaluate and optimize the device's performance in your specific application.
  • The AD9575ARUZLVD can support clock frequencies up to 2.5 GHz, but the maximum frequency may vary depending on the specific application and output configuration. It's recommended to consult the datasheet and application notes for more information on clock frequency limitations and optimization techniques.
  • To ensure the reliability and ruggedness of the AD9575ARUZLVD, it's essential to follow proper handling and storage procedures, as well as to design the PCB with adequate thermal management and ESD protection. Additionally, Analog Devices provides a range of reliability and quality data, including AEC-Q100 qualification, to support the use of the AD9575ARUZLVD in harsh environments.
  • Yes, the AD9575ARUZLVD is not limited to automotive applications and can be used in a wide range of industries, including industrial, medical, and consumer electronics. However, it's essential to ensure that the device meets the specific requirements of your application, including operating conditions, reliability, and regulatory compliance.
