AD9577BCPZ - Analog Devices

Description: Analog Devices AD9577BCPZ, 3 PLL Clock Driver, Maximum of 637.5 MHz, 40-Pin LFCSP WQ

Download AD9577BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

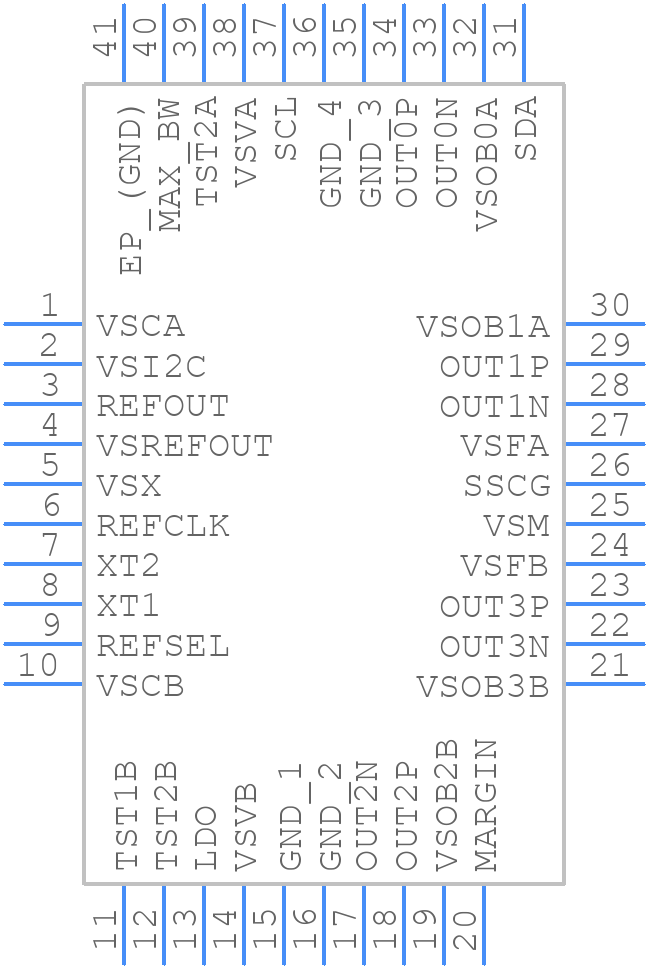

AD9577BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD9577BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-40-7
click to zoom
3D Models
AD9577BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-40-7
click to zoom

AD9577BCPZ Details

  • Manufacturer Part Number:

    AD9577BCPZ

  • Source Url Status Check Date:

    2013-05-01 14:56:31.232

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-7

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    637.5 MHz

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    25 MHz

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PROCESSOR SPECIFIC

AD9577BCPZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by AVCC, and then the digital supply (DVCC). This ensures that the analog and digital sections of the device are powered up correctly.
  • To optimize performance, ensure that the device is operated within the recommended operating conditions, use a high-quality clock source, and optimize the loop filter components. Additionally, consider using a low-jitter clock source and minimizing the number of clock domain crossings.
  • The AD9577BCPZ can support clock frequencies up to 3.2 GHz. However, the maximum frequency may vary depending on the specific application and operating conditions.
  • The AD9577BCPZ is a highly configurable device, and the configuration will depend on the specific application requirements. Consult the datasheet and application notes for guidance on configuring the device for specific applications.
  • Key considerations for PCB layout and design include minimizing signal trace lengths, using a solid ground plane, and ensuring that the device is decoupled from the power supply. Additionally, consider using a 4-layer PCB with a dedicated ground plane to minimize noise and interference.
